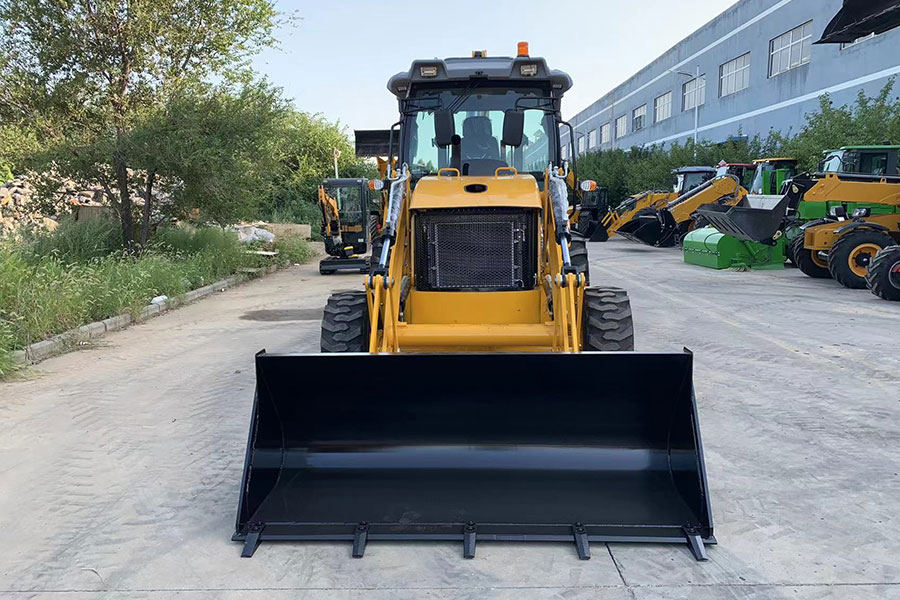

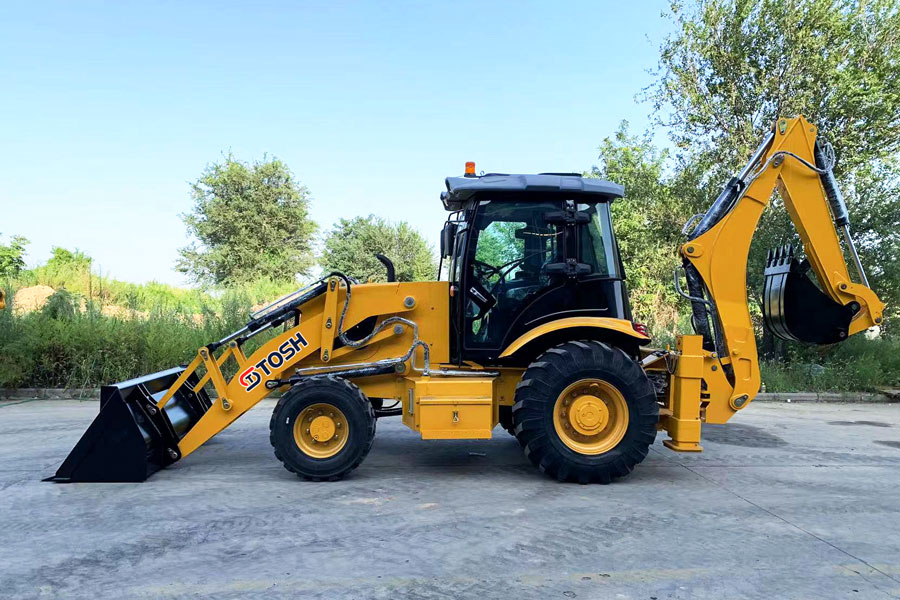

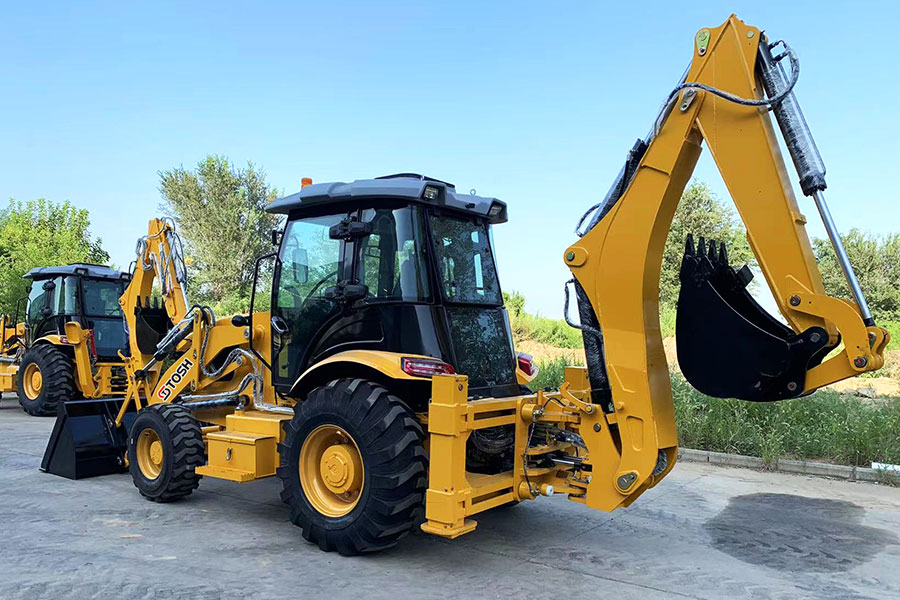

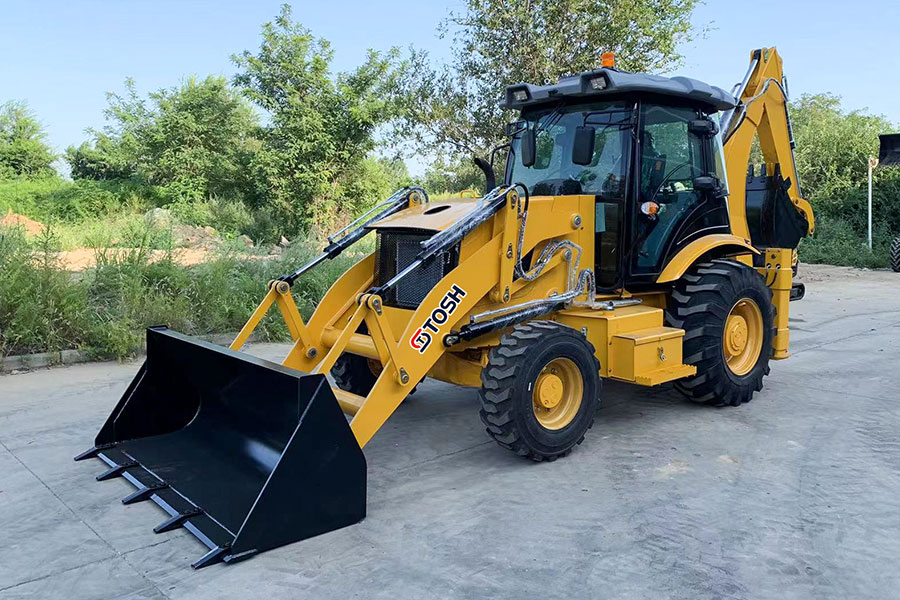

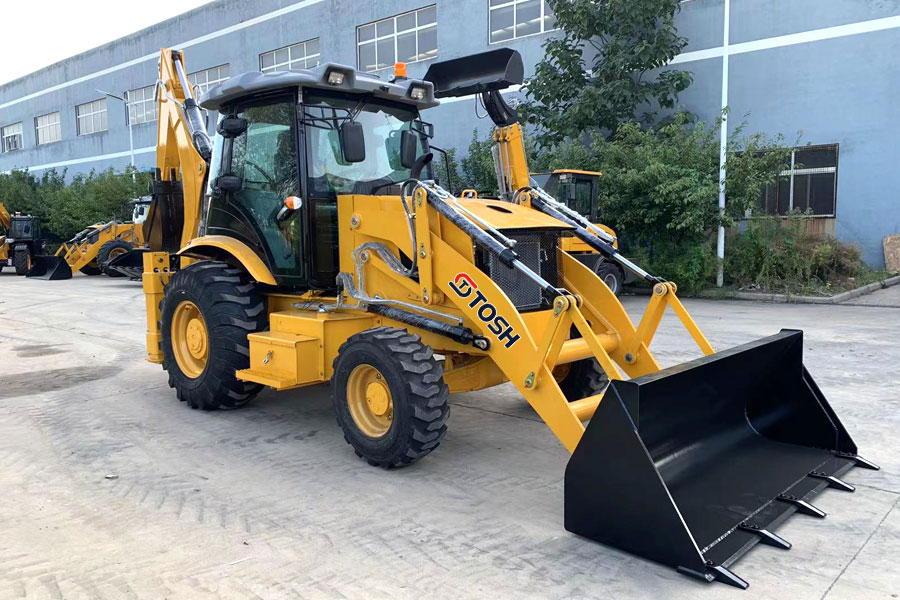

WZ3CX Backhoe Loader
Operating Weight: 8 t
Dimensions: 6.8 × 2.39 × 2.89m
Power: 76 kW
WZ3CX Heavy-Duty Backhoe Loader | 8.0-Ton 4x4 Automatic 3.0-Ton Load & 4.1m Deep Dig
8,000kg Operating Mass | Integrated Rigid Frame | 3,000kg Front Loader (1.5m³) | 4,100mm Backhoe Dig Depth | 76kW Turbo Diesel | F4+R4 Double Reduction 4x4
Why Commercial Infrastructure Contractors Choose the WZ3CX Backhoe Loader
- Integrated Heavy Frame with Double Reduction Axles: Built on a rigid one-piece structural chassis with FEICHENG YUNYU double-reduction 4x4 drive axles, front-wheel drive steering, and staggered tubeless flotation tires (Front 14-17.5 / Rear 19.5L-24), providing exceptional torsion resistance and 35 km/h road mobility.
- Massive 3.0-Ton Front Loader (1.5m³ Bucket / 42kN Breakout): Outfitted with an expansive 2,300 mm wide bucket, 42 kN breakout force, and a 2,800 mm dumping height with rapid 9.5-second total actuation cycles, loading multi-axle dump trucks and batching hoppers with outstanding throughput.
- Deep 4.1m Excavator Envelope with Factory Breaker Piping: Features a 4,100 mm vertical digging depth, 48 kN tearing breakout force, 190° boom swing arc, cylinder cushioning, and pre-installed auxiliary hydraulic lines ready for immediate rock breaker operation.
- Full Hydraulic Pilot Controls & Climate-Controlled Cab: Equipped with dual hydraulic pilot joysticks for effortless multi-function metering, factory air conditioning, dual rearview cameras, LCD display, suspension rotating seat, and A-type locking outriggers for secure jobsite stabilization.
| Model | WZ3CX |
| Operating Weight / Frame Type | 8000 kg (8.0 Ton) | Integrated Rigid Chassis |
| Engine Power / Type | 76 kW Turbocharged / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Rated Load / Capacity) | 3000 kg (3.0 Ton) / 1.5 m³ | Breakout Force: 42 kN |
| Rear Backhoe (Dig Depth / Breakout Force) | 4100 mm (4.1 m) / 48 kN Dig Force (190° Swing) |
| Transmission / Axles | F4+R4 Automatic Transmission | Double Reduction Axles (0–35 km/h) |
⬇️ View Full Technical Parameters & Configurations ⬇️
| Machine Overall Specifications | |
| Operating Weight | 8000 kg |
| Chassis Structure | Integrated Rigid Frame |
| Overall Dimensions (L*W*H) | 6800 * 2390 * 2890 mm |
| Wheel Drive Type | 4x4 Four-Wheel Drive (Front Steering Drive Axle) |
| Drive Axle | FEICHENG YUNYU, Double Reduction Axle |
| Transmission Type | Hydraulic, Automatic (F4 + R4) |
| Steering Angle | 36° |
| Travel Speed | 0 – 35 km/h |
| Braking System | Air Over Oil Caliper Brake |
| Max. Gradeability | 30° |
| Min. Turning Radius | 6581 mm |
| Wheel Base | 2250 mm |
| Min. Ground Clearance | 300 mm |
| Tire Configuration | Tubeless | Front: 14-17.5, Rear: 19.5L-24 |
| Engine & Hydraulic System | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling, Turbocharger |
| Rated Power | 76 kW |
| System Working Pressure | 22 MPa |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 3000 kg / 1.5 m³ |
| Bucket Width | 2300 mm |
| Max. Dump Height / Distance | 2800 mm / 1062 mm |
| Max. Breakout Force | 42 kN |
| Total Actuation Time | 9.5 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.35 m³ / 700 mm |
| Max. Digging Depth | 4100 mm (4.1 m) |
| Max. Digging Force | 48 kN |
| Boom Swing Angle | 190° |
| Standard Cabin & Equipment Features | |
| Integrated Chassis Structure, Factory Air Conditioning, Dual Hydraulic Pilot Joysticks for Loader and Excavator, Pre-installed Auxiliary Breaker Hydraulic Lines, Cylinder with Buffering Function, Dual Rearview Cameras, Adjustable LCD Display, Deluxe Rotating Suspension Seat with Self-Locking Belts & Armrests, Luxury Cab with Push-Pull Windows, Sunroof, Fan, AM/FM Radio, LED Work Lights, Fire Extinguisher, Window Breaking Hammer, A-Type Hydraulic Outriggers with Locks. | |
✔ Rigid Integrated Chassis & Double Reduction Axles: Extreme structural durability with heavy-duty Feicheng Yunyu axles and large rear flotation tires handles punishing continuous quarry and civil demolition cycles.
✔ Heavy 3.0-Ton Loader & 4.1m Deep Backhoe: Lifts 1.5 m³ batches with 42 kN breakout force in front and digs 4,100 mm deep with 48 kN tearing force and breaker lines in back, maximizing versatile one-machine productivity.
✔ 76kW Turbocharged Power & Full Pilot Control: High-torque 4-cylinder turbo diesel paired with F4+R4 automatic transmission and ergonomic hydraulic pilot joysticks ensures smooth simultaneous multi-valve operation and rapid 35 km/h transit.
