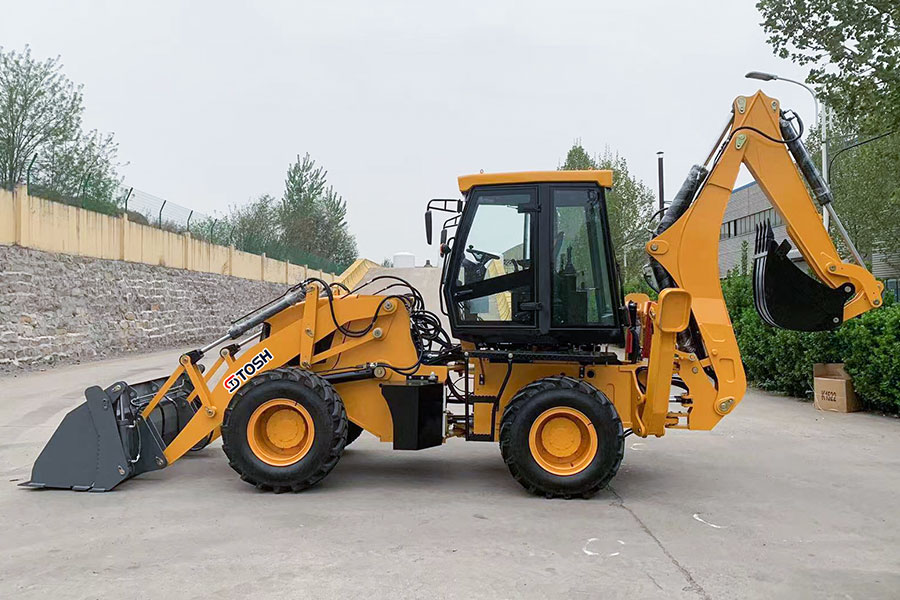

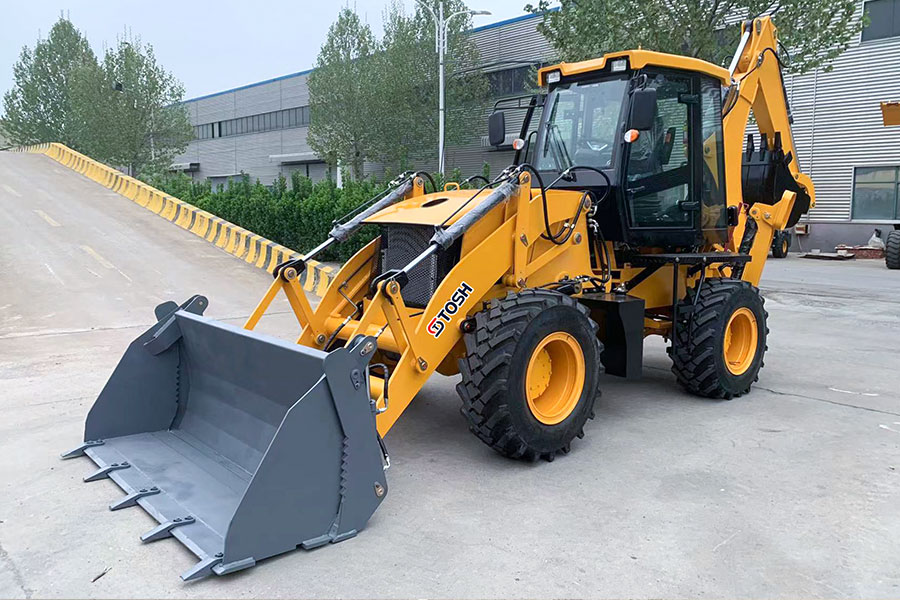

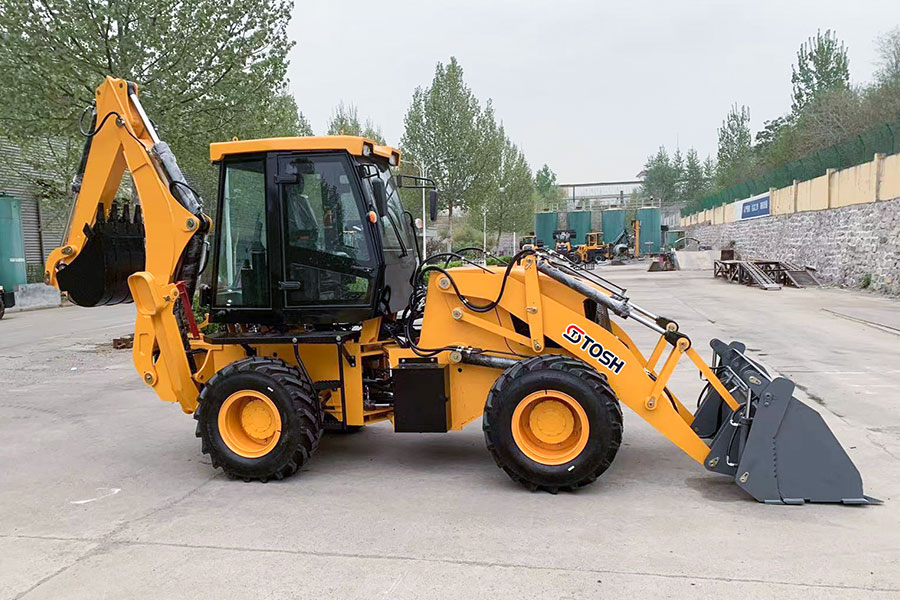

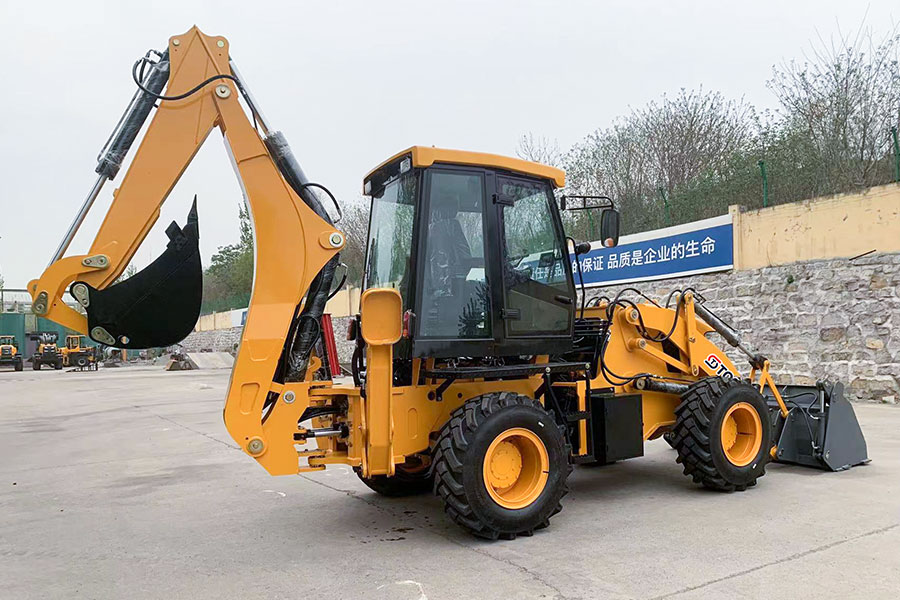

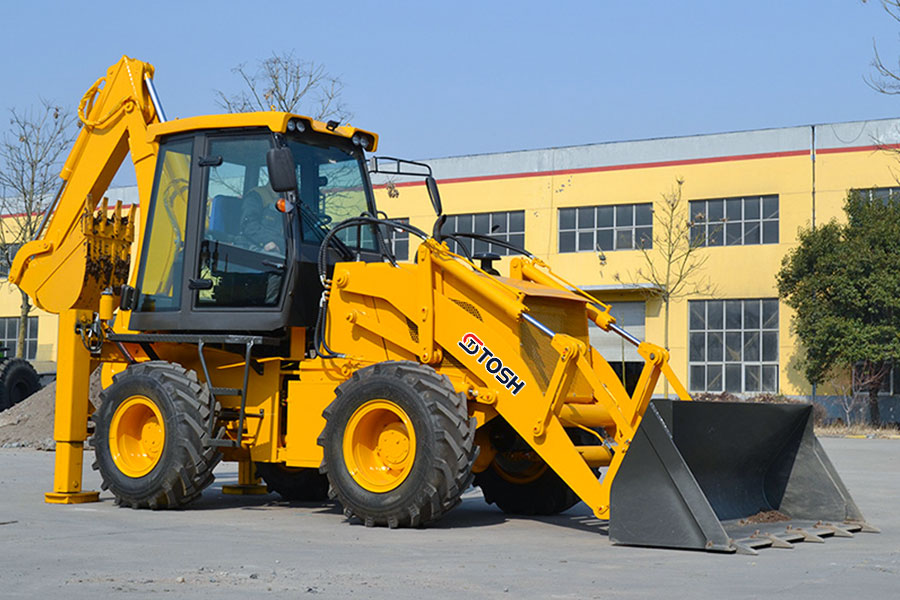

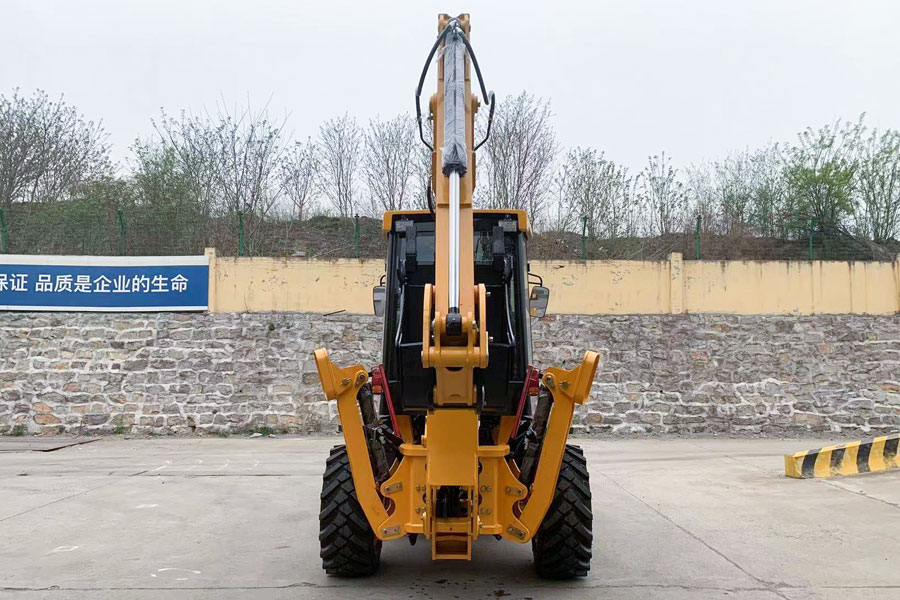

WZ2CX Backhoe Loader
Operating Weight: 7.5 t
Dimensions: 7.6 × 2.26 × 2.9m
Power: 76 kW
WZ2CX Heavy-Duty Backhoe Loader | 7.5-Ton 4x4 Automatic 2.5-Ton Load & 4.1m Deep Dig
7,500kg Operating Mass | 2,500kg Front Loader (1.3m³) | 4,100mm Backhoe Dig Depth | 76kW Turbo Diesel | F4+R4 Automatic Powershift
Why Heavy Earthmoving Contractors Choose the WZ2CX Backhoe Loader
- Deep 4.1m Digging Reach & Factory Breaker Auxiliary Pipeline: Features a 4,100 mm vertical digging depth, 48 kN tearing breakout force, 180° swing arc, and pre-installed auxiliary hydraulic piping dedicated for rapid breaker attachment on municipal concrete demolitions.
- 2.5-Ton Front Loader with Rapid 9.5s Cycles: Carries a 2,500 kg payload in an expansive 1.3 m³ bucket (2,100 mm width) with 38 kN breakout force and an extended 1,062 mm dumping reach (2,750 mm dump height) for efficient truck and hopper batch-loading.
- 76kW Turbo Diesel & F4+R4 Automatic Powershift: Driven by a 4-cylinder turbocharged water-cooled diesel engine paired with full hydraulic torque converter transmission (F4+R4 electronic shift), high-frequency large hub reduction 4x4 axles, and air-over-oil caliper brakes for speeds up to 35 km/h.
- Air-Conditioned Deluxe Cabin & Dual Pilot Joysticks: Outfitted with full-hydraulic pilot joysticks for loader and backhoe, front/rear dual cameras, factory air conditioning, adjustable LCD dashboard, suspension rotating seat, LED work lights, and an articulated 36° frame with a tight 3,660 mm turning radius.
| Model | WZ2CX |
| Operating Weight | 7500 kg (7.5 Ton) |
| Engine Power / Type | 76 kW Turbocharged / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Rated Load / Capacity) | 2500 kg (2.5 Ton) / 1.3 m³ | 9.5s Actuation Time |
| Rear Backhoe (Dig Depth / Breakout Force) | 4100 mm (4.1 m) / 48 kN Dig Force (180° Swing) |
| Transmission / Axles | F4+R4 Automatic Transmission | Large Hub-Reduction Axles (0–35 km/h) |
⬇️ View Full Technical Parameters & Configurations ⬇️
| Machine Overall Specifications | |
| Operating Weight | 7500 kg |
| Overall Dimensions (L*W*H) | 7600 * 2260 * 2900 mm |
| Wheel Drive Type | 4x4 Full-Time Four-Wheel Drive |
| Drive Axle | High-frequency Heavy-duty Large Wheel Side Reduction Axle |
| Transmission Type | Hydraulic, Automatic (Full Torque Converter, Electronic Control Movement) |
| Gear Shifts | F4 + R4 |
| Travel Speed | 0 – 35 km/h |
| Steering System | Articulated Full-hydraulic Steering (Steering Angle: 36°) |
| Braking System | Air Over Oil Caliper Brake |
| Max. Gradeability | 30° |
| Min. Turning Radius | 3660 mm |
| Wheel Base / Wheel Tread | 2250 mm / 1700 mm |
| Min. Ground Clearance | 300 mm |
| Tire Size | 16/70-20 Heavy-Duty Trapezoidal Tires |
| Engine & Hydraulic System | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling, Turbocharger |
| Rated Power | 76 kW |
| System Working Pressure | 22 MPa |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 2500 kg / 1.3 m³ |
| Bucket Width | 2100 mm |
| Max. Dump Height / Distance | 2750 mm / 1062 mm |
| Max. Breakout Force | 38 kN |
| Total Actuation Time | 9.5 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.3 m³ / 620 mm |
| Max. Digging Depth | 4100 mm (4.1 m) |
| Max. Digging Force | 48 kN |
| Boom Swing Angle | 180° |
| Standard Cabin & Equipment Features | |
| Factory Air Conditioning, Loader & Backhoe Hydraulic Pilot Joystick Operation, Rear Digging Auxiliary Hydraulic Breaker Piping, Front & Rear Dual Cameras with Wide-Angle Mirrors, Adjustable LCD Instrument Panel, Deluxe Multi-Directional Adjustable Rotating Seat with Armrests & Safety Belt, Luxury Cab with Front/Rear Wipers, Radio, Fan, Skylight, LED Work Lights, Siren, Window Breaking Hammer, Fire Extinguisher, A-Type Hydraulic Outriggers with Locks, Steering Lock Function. | |
✔ Deep 4.1m Foundation Trenching with 48kN Breakout: Massive rear digging envelope paired with 48 kN tearing force and pre-installed hydraulic breaker lines handles extreme demolition and deep civil excavation.
✔ 2.5-Ton Heavy Front Loader with 9.5s Cycles: Moves 1.3 m³ batches with 38 kN breakout force and an extended 1,062 mm forward dumping reach for rapid truck and hopper loading.
✔ 76kW Turbo Power & Climate-Controlled Comfort: High-torque 4-cylinder turbo diesel paired with F4+R4 automatic transmission, 3,660 mm tight turning radius, and factory air conditioning ensures top-tier operator stamina and fast 35 km/h transit.
