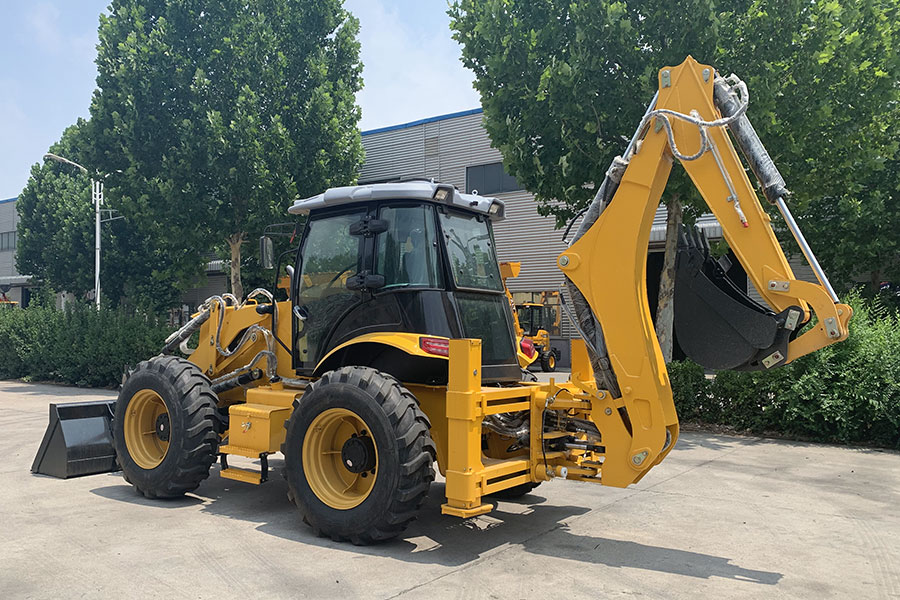

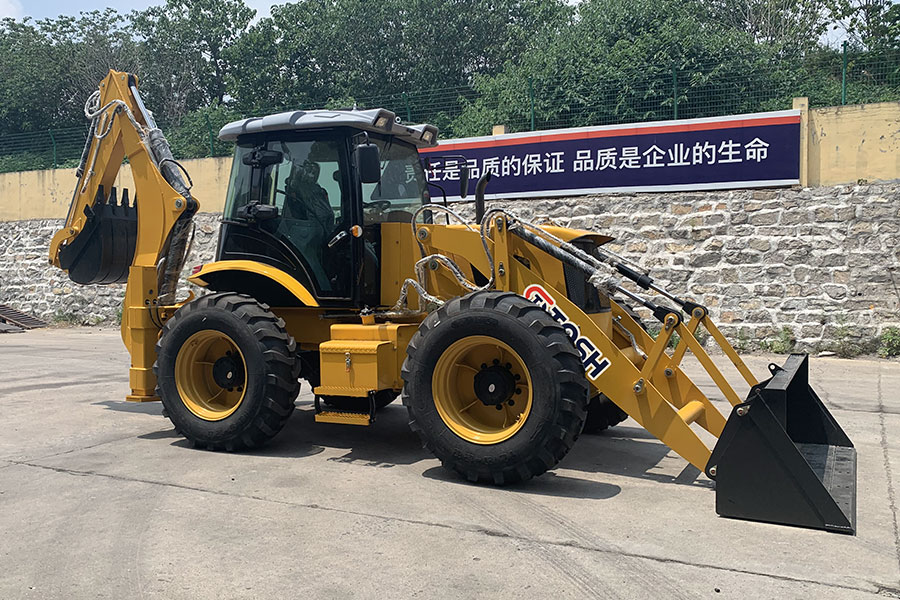

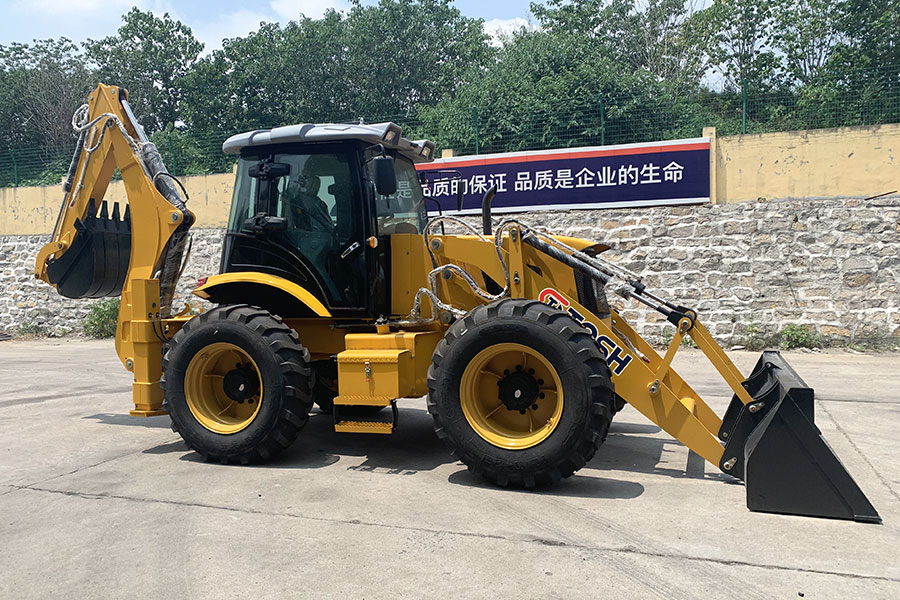

WZ4CX Backhoe Loader
Operating Weight: 9 t
Dimensions: 6.65 × 2.53 × 3.12m
Power: 91 kW
WZ4CX Flagship Heavy-Duty Backhoe Loader | 9.0-Ton 4x4x4 Multi-Steering 3.0-Ton Load & 91kW Yuchai Power
9,000kg Operating Mass | Integrated Rigid Frame | 4x4x4 All-Wheel Steering (Front / 4WS / Crab) | 3,000kg Front Loader (1.5m³) | 4,100mm Backhoe Dig Depth | 91kW Yuchai Turbo Diesel
Why Tier-1 Civil Infrastructure Fleets Choose the WZ4CX Flagship Backhoe Loader
- Advanced 4x4x4 Multi-Mode Electronic Steering: Engineered with front and rear steering drive axles supporting three selectable modes—front-wheel steering, 4-wheel coordinated steering (5,750 mm tight turning radius), and crab walk—enabling exceptional maneuverability across restricted urban trenching sites.
- Premium Front-Mounted 91kW Yuchai Turbo Diesel: Powered by an industrial-grade Yuchai 4-cylinder turbocharged liquid-cooled diesel engine outputting 91 kW, coupled with large 125L fuel/hydraulic reservoirs and a 63 mL/r plunger pump with load-sensing valves for sustained 22 MPa high-pressure duty.

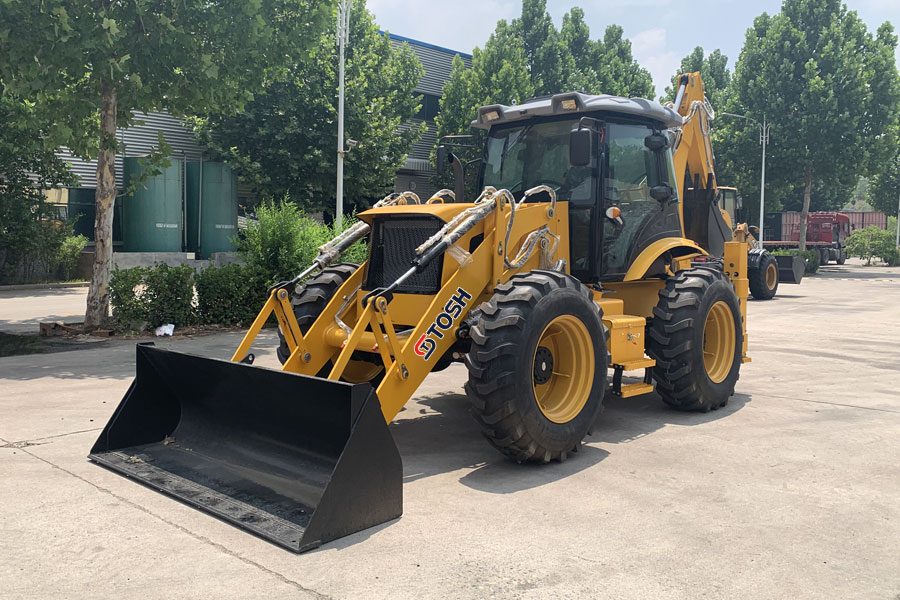

- Heavy 3.0-Ton Loader (1.5m³ Bucket / 42kN Breakout): Outfitted with a rigid box-structure boom, third hydraulic auxiliary function, 2,300 mm wide bucket, 42 kN breakout force, and rapid 9.5s actuation cycles for high-volume truck and aggregate hopper loading.

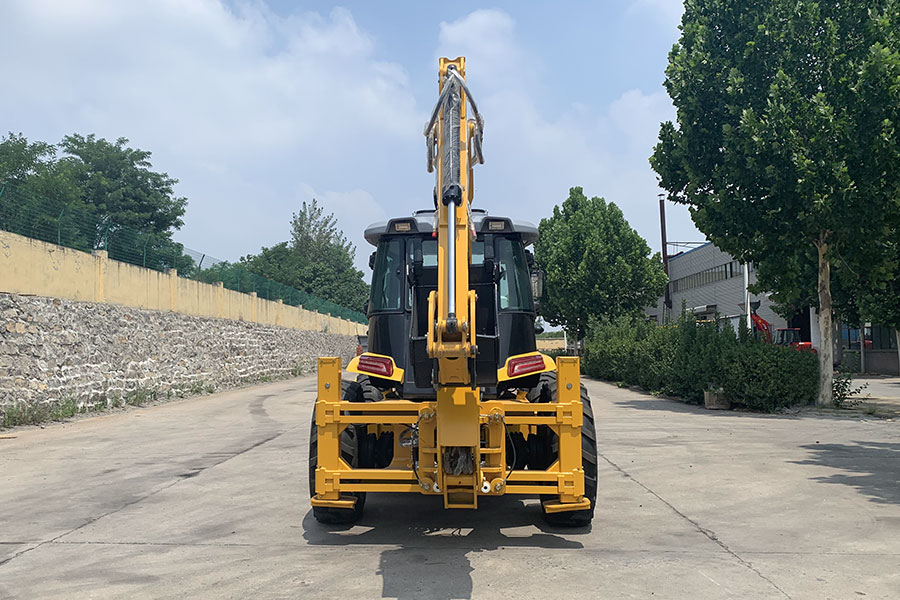

- Deep 4.1m Excavation with Mechanical Sideshift & Breaker Line: Rear backhoe reaches a 5,345 mm digging radius and 4,100 mm depth with 48 kN tearing force, 190° swing, cylinder cushioning, pre-installed breaker piping, and H-shaped locking outriggers with mechanical sideshift for digging flush against walls.
| Model | WZ4CX (Flagship Edition) |
| Operating Weight / Frame | 9000 kg (9.0 Ton) | Integrated Rigid Frame |
| Engine Make & Power | Yuchai 91 kW Turbocharged / 4-Cylinder Water-Cooled Diesel |
| Steering & Drive Modes | 4x4x4 All-Wheel Drive & Steering (Front / 4WS / Crab Steer) |
| Front Loader (Rated Load / Capacity) | 3000 kg (3.0 Ton) / 1.5 m³ | Breakout Force: 42 kN |
| Rear Backhoe (Dig Depth / Envelope) | 4100 mm (4.1 m) / 48 kN Force (H-Type Legs + Sideshift) |
| Transmission / Axles | F4+R4 Automatic (320 Transmission) | Double Reduction Axles (0–35 km/h) |
⬇️ View Full Technical Parameters & Configurations ⬇️
| Machine Overall Specifications | |
| Operating Weight | 9000 kg |
| Chassis Construction | Integrated Rigid Structural Frame |
| Overall Dimensions (L*W*H) | 6650 * 2530 * 3120 mm |
| Wheel Drive & Steering Type | 4x4x2 / 4x4x4 (Front / Four-Wheel / Crab Steering via Electronic Control) |
| Drive Axles | FEICHENG YUNYU, Double Reduction Front & Rear Steering Drive Axles |
| Transmission Type | Hydraulic Automatic, 320 Dual High & Low Speed Gearbox (F4 + R4) |
| Travel Speed | 0 – 35 km/h |
| Max. Gradeability | 30° |
| Min. Turning Radius | 5750 mm |
| Wheel Base / Wheel Tread | 2450 mm / 2139 mm |
| Tire Specifications | Tubeless Heavy-Duty 16.9-28 |
| Engine & Hydraulic System | |
| Engine Make & Model | Yuchai Diesel, 4-Cylinder, 4-Stroke, Water-Cooling, Turbocharger |
| Rated Engine Power | 91 kW |
| Hydraulic System Core | Plunger Pump (63 mL/r Displacement) + Load-Sensing Valve |
| System Working Pressure | 22 MPa |
| Fuel / Hydraulic Tank Capacity | 125 L / 125 L |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 3000 kg / 1.5 m³ |
| Bucket Width | 2300 mm |
| Max. Dump Height / Distance | 2800 mm / 870 mm |
| Max. Breakout Force | 42 kN |
| Total Actuation Time | 9.5 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.35 m³ / 700 mm |
| Max. Digging Depth | 4100 mm (4.1 m) |
| Max. Digging Radius / Height | 5345 mm / 5470 mm |
| Max. Dump Height / Force | 3740 mm / 48 kN |
| Boom Swing Angle | 190° |
| Standard Cabin & Equipment Features | |
| Integrated Rigid Chassis, Factory Heating & Cooling Air Conditioning, Dual Pilot Hydraulic Joysticks for Loader & Backhoe, Plunger Pump with Load-Sensing Valve, Front Loader 3rd Function Auxiliary Hydraulics, Rear Breaker Piping, H-Shaped Hydraulic Outriggers with Cylinder Locks and Mechanical Sideshift, Cylinder Cushioning, Dual Rearview Cameras with Wide-Angle Mirrors, Adjustable LCD Display, Deluxe Suspension Rotating Seat with Armrests & Self-Locking Belts, Front Mudguards, Sliding Windows, Sunroof, Fan, AM/FM Radio, LED Work Lights, Fire Extinguisher, Window Breaking Hammer. | |
✔ 4x4x4 Multi-Steering with Crab Walk Agility: Three electronic steering modes allow this 9-ton workhorse to navigate narrow urban alleys, position flush against roadside barriers, and pivot with a tight 5,750 mm turning radius.
✔ Deep 4.1m Trenching Reach with Mechanical Sideshift: Massive 5,345 mm horizontal reach and 48 kN tearing force with hydraulic sideshift and factory breaker piping deliver uncompromised civil demolition and foundation trenching productivity.
✔ High-Output 91kW Yuchai Turbo Diesel & Load-Sensing Hydraulics: Plunger pump hydraulic architecture coupled with equal-size 16.9-28 tires and double reduction axles delivers exceptional fuel efficiency, continuous 22 MPa pressure, and swift 35 km/h site mobility.
