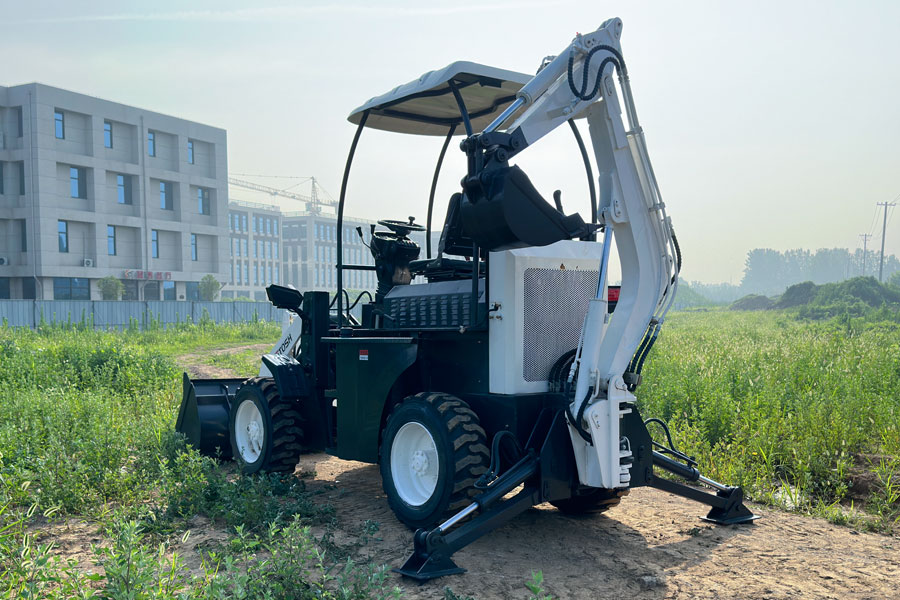

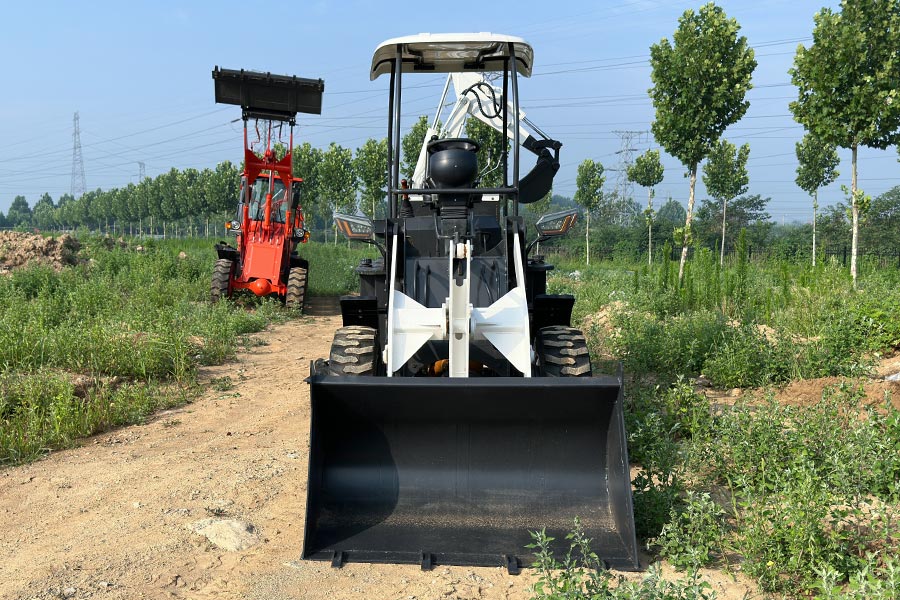

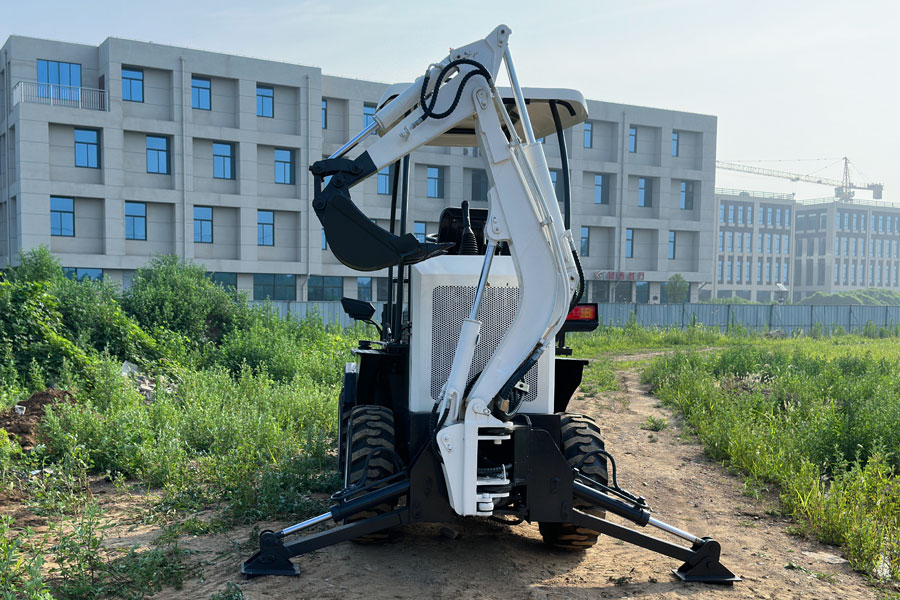

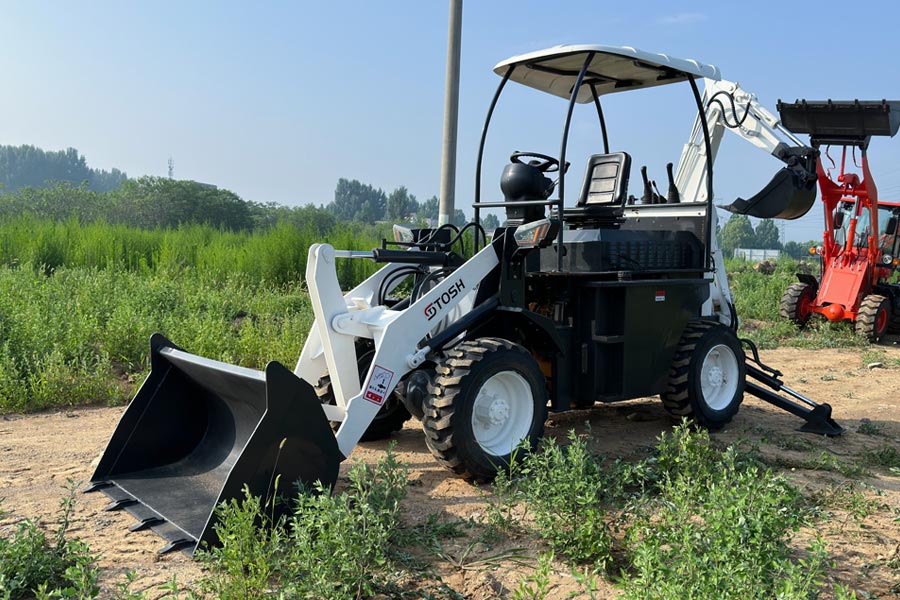

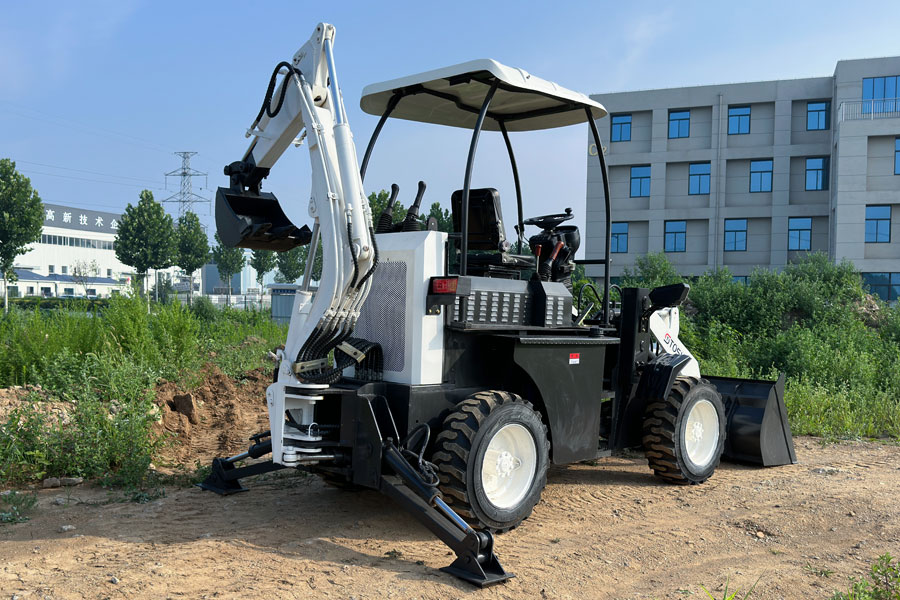

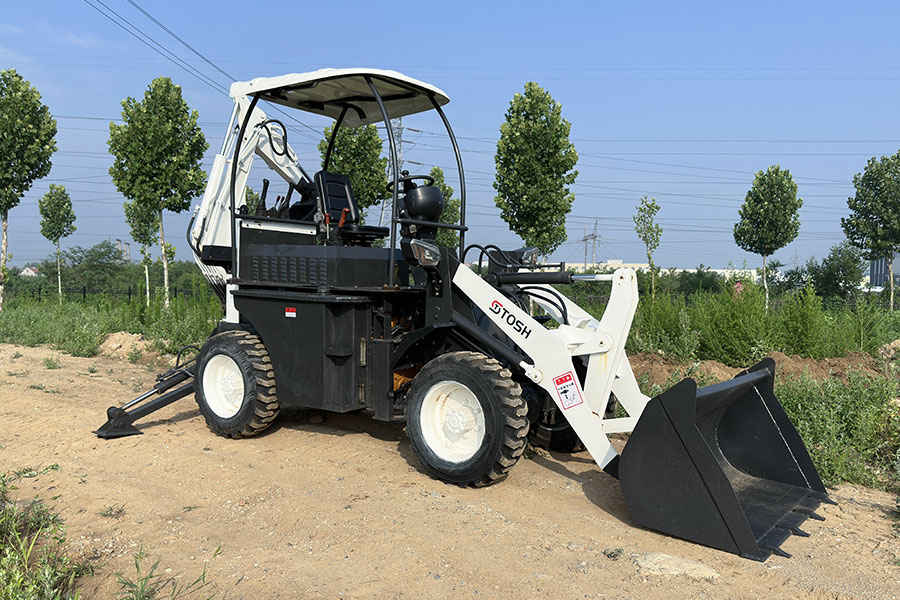

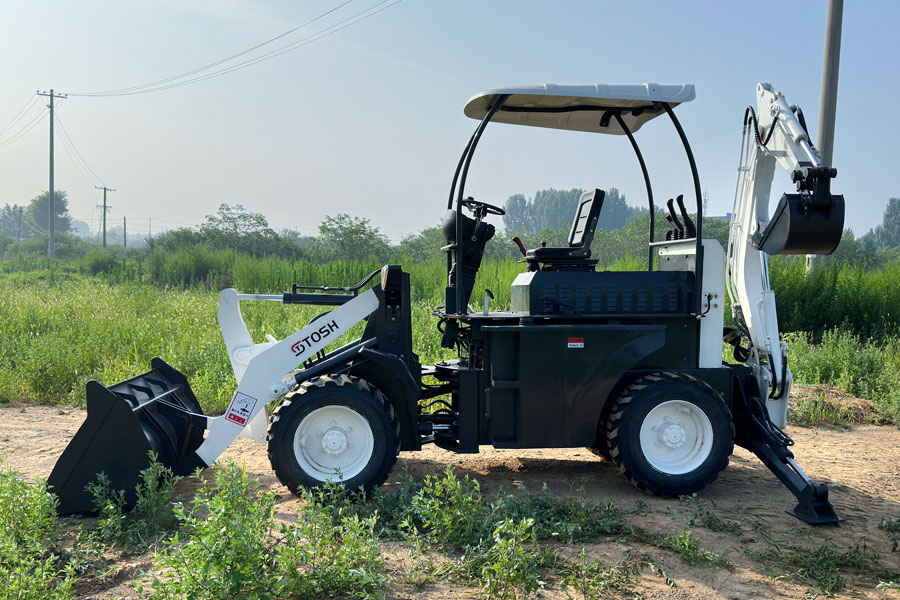

WZ1CXP Backhoe Loader
Operating Weight: 2.7 t
Dimensions: 4.4 × 1.665 × 2.55 m
Power: 37 kW
WZ1CXP Heavy-Duty Backhoe Loader | 2.7-Ton 4x4 Automatic 37kW Dual Workstation
2,700kg Operating Mass | 1,000kg Front Loader (0.5m³) | 42kN Breakout Force | 37kW 4-Cylinder Diesel | 180° Backhoe Swing
Why Heavy Earthmoving Fleets Choose the WZ1CXP Backhoe Loader
- Robust 37kW 4-Cylinder Water-Cooled Diesel: Powered by a high-output 4-stroke liquid-cooled diesel engine delivering 37 kW of sustained power, ensuring superior lugging performance and high hydraulic breakout reserve under tough soil conditions.
- Heavy-Duty Front Loading Capacity (1,000kg / 42kN): Equipped with a wider 1,300 mm bucket (0.5 m³ capacity), 3,150 mm maximum lifting height, and a massive 42 kN breakout force, making rapid work of bulk aggregate loading and high-sided truck dumping.
- 180° Wide-Angle Excavator Articulation: The rear backhoe delivers 28 kN of digging force and 1,600 mm digging depth across a 180° boom swing arc, allowing flexible offset excavation and spoil placement without moving the chassis.
- Articulated Full-Hydraulic Steering & 4x4 Automatic Drive: Features a 33° articulated hydraulic steering frame, 4x4 automatic hydraulic transmission (F2+R2), and 250 mm high ground clearance, achieving roading speeds up to 25 km/h with 30° grade climbing capability.
| Model | WZ1CXP |
| Operating Weight | 2700 kg (2.7 Ton) |
| Engine Power / Type | 37 kW / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Capacity / Rated Load) | 0.5 m³ / 1000 kg (1.0 Ton) | Breakout Force: 42 kN |
| Rear Backhoe (Dig Force / Swing Angle) | 28 kN / 180° Full Swing (Dig Depth: 1600 mm) |
| Drive & Steering | 4x4 Automatic Transmission | Articulated Full-Hydraulic (0–25 km/h) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Machine Overall Specifications | |
| Operating Weight | 2700 kg |
| Overall Dimensions (L*W*H) | 4400 * 1665 * 2550 mm |
| Wheel Drive Type | 4x4 Full-Time Four-Wheel Drive |
| Transmission Type | Hydraulic, Automatic (F2 + R2) |
| Steering System | Articulated Full-hydraulic Steering (Steering Angle: 33°) |
| Travel Speed | 0 – 25 km/h |
| Braking System | Drum Brake (Braking Distance: 330 mm) |
| Max. Gradeability | 30° |
| Min. Turning Radius | 3200 mm |
| Wheel Base / Wheel Tread | 1960 mm / 1130 mm |
| Min. Ground Clearance | 250 mm |
| Tire Size | 16.5-10 |
| Engine Technical Parameters | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling |
| Rated Power | 37 kW |
| Fuel Tank Capacity | 25 L |
| Hydraulic System | |
| Working Pressure | 18 MPa |
| Hydraulic Oil Tank Capacity | 25 L |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 1000 kg / 0.5 m³ |
| Bucket Width | 1300 mm |
| Max. Lifting / Dump Height | 3150 mm / 2300 mm |
| Max. Dump Distance | 1000 mm |
| Max. Breakout Force | 42 kN |
| Total Actuation Time | 12 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.1 m³ / 400 mm |
| Max. Digging Depth | 1600 mm |
| Max. Digging Height / Dump Height | 3500 mm / 2000 mm |
| Max. Digging Radius | 2900 mm |
| Max. Digging Force | 28 kN |
| Boom Swing Angle | 180° |
✔ 1-Ton Front Loading & 42kN Breakout: Lifts up to 1,000 kg with an oversized 0.5 m³ bucket, easily loading high tippers and handling heavy aggregate stockpiles.
✔ 180° Excavator Swing & 28kN Tearing Force: Expansive 180° boom swing arc allows smooth side-trenching and direct spoil casting without repositioning the vehicle.
✔ 37kW 4-Cylinder Engine & 25 km/h Mobility: Powerful multi-cylinder diesel paired with 4x4 automatic hydraulic drive ensures rapid 25 km/h cross-site mobility and 30° climbing capability.
