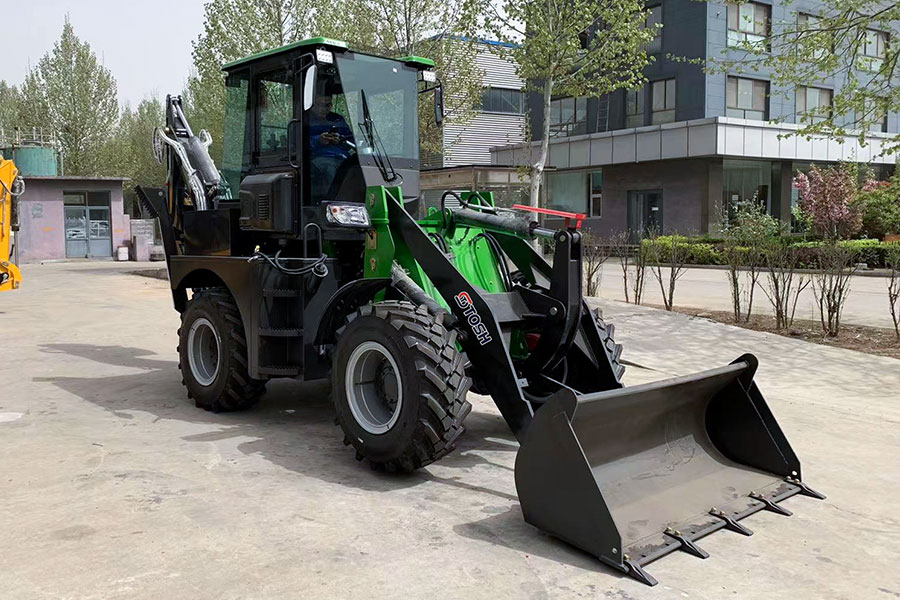

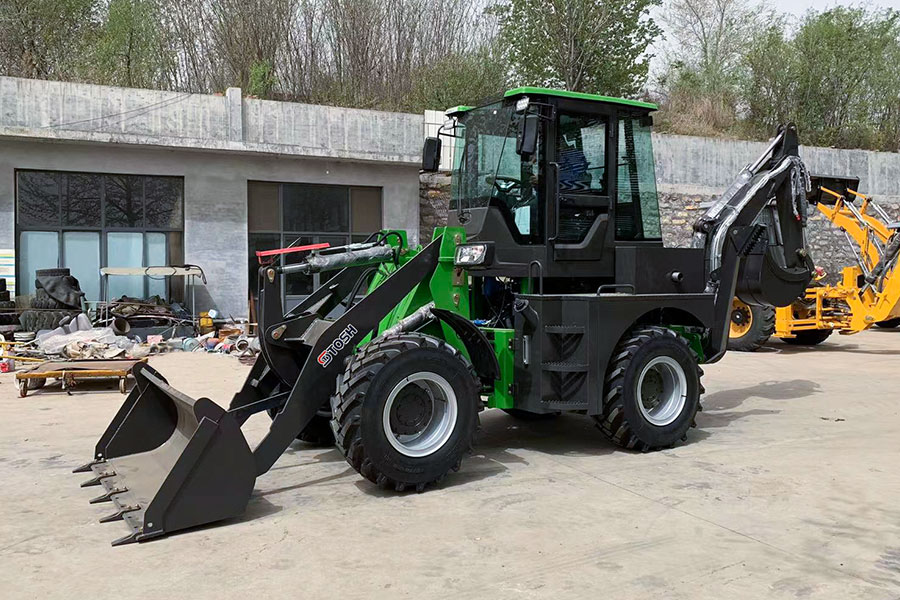

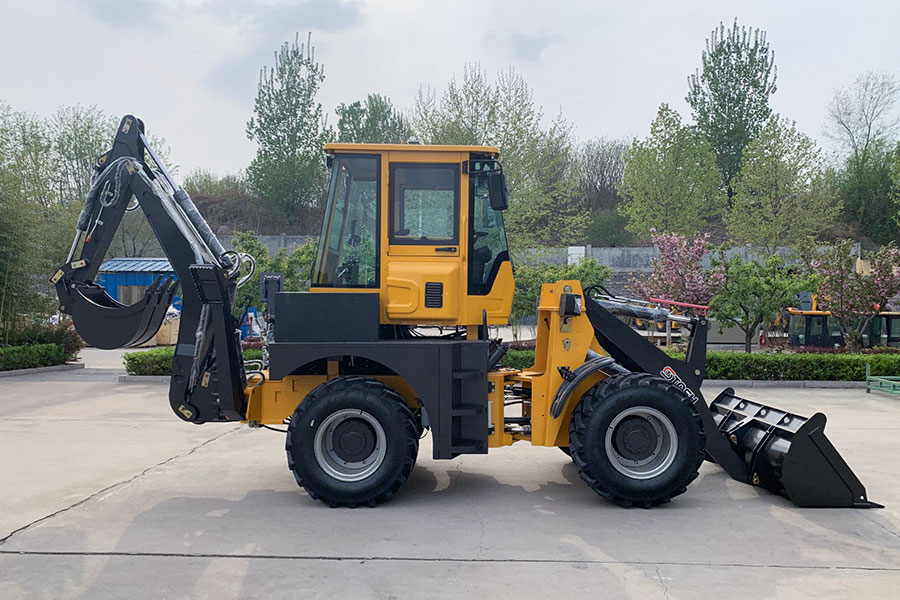

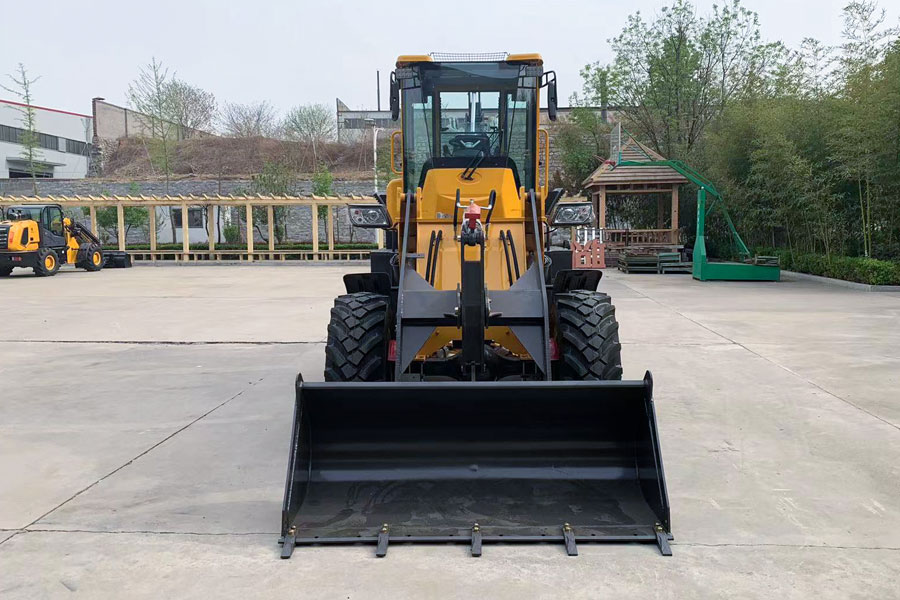

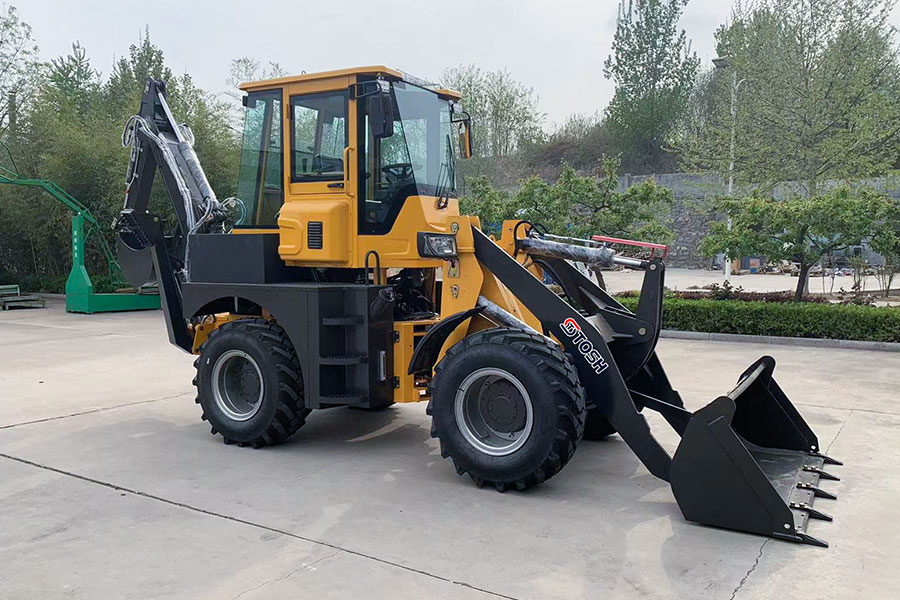

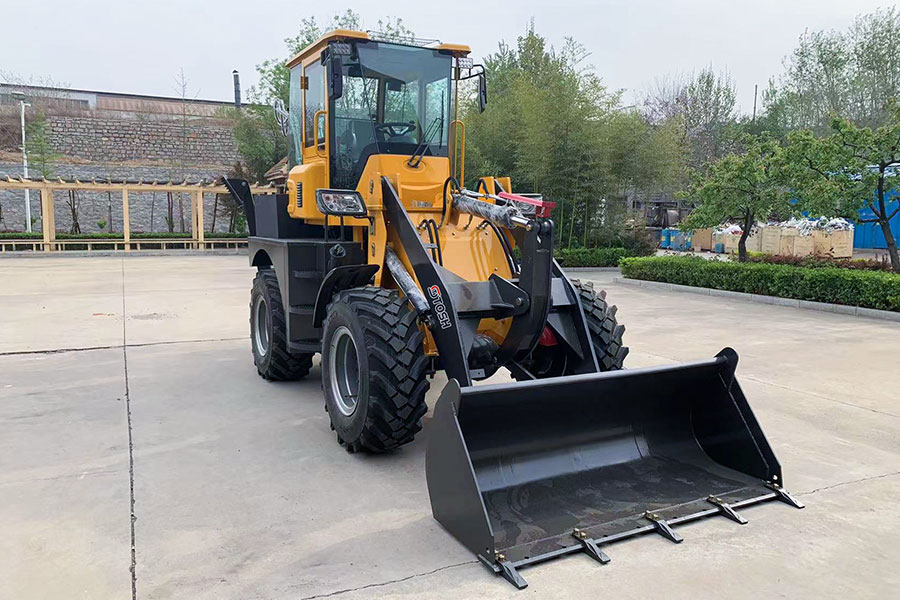

WZ28-20 Backhoe Loader
Operating Weight: 3.8 t
Dimensions: 6.8 × 1.9 × 2.88m
Power: 58 kW
WZ28-20 Heavy-Duty Backhoe Loader | 5.0-Ton 4x4 Automatic 2.0-Ton Load & 65kW Turbo Power
5,000kg Operating Mass | 2,000kg Front Loader (1.0m³) | 2,500mm Backhoe Dig Depth | 65kW Turbo Diesel | Large Hub Reduction 4x4 Axles
Why Heavy Earthmoving Contractors Choose the WZ28-20 Backhoe Loader
- High-Output 65kW Turbocharged Diesel Engine: Driven by an industrial 4-cylinder, 4-stroke liquid-cooled turbocharged diesel engine generating 65 kW, delivering robust torque output to run a continuous 22 MPa hydraulic system and easily conquer 30° grade climbing under full load.
- Solid 2.0-Ton Loader Capacity (1.0m³ Bucket / 36kN Breakout): Equipped with an expansive 2,000 mm wide bucket, 36 kN breakout force, and an elevated 3,300 mm dump height with an extended 1,022 mm dump reach, loading tandem-axle tippers in rapid 9.5s actuation cycles.
- Deep 2.5m Trenching Reach & 190° Ultra-Wide Swing Arc: Rear backhoe digs down to 2,500 mm with cylinder buffering function, A-type locking hydraulic outriggers, and an extra-wide 190° swing arc for versatile spoil placement and ditch maintenance without reparking.
- Large Wheel Side Reduction Axles & Forward-Tilting Cab: Built on heavy-duty large hub-reduction 4x4 drive axles with automatic transmission (F2+R2), 16/70-20 traction tires, 300 mm ground clearance, and air-over-oil caliper brakes, complemented by a forward-tilting deluxe cab with heater, fan, and rotating seat for fast maintenance access.
| Model | WZ28-20 |
| Operating Weight | 5000 kg (5.0 Ton) |
| Engine Power / Type | 65 kW Turbocharged / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Rated Load / Capacity) | 2000 kg (2.0 Ton) / 1.0 m³ (Dump Height: 3300 mm) |
| Rear Backhoe (Dig Depth / Swing Angle) | 2500 mm (2.5 m) / 190° Ultra-Wide Swing |
| Drive / Axle / Brake System | 4x4 Automatic | Large Wheel Side Reduction Axles | Air Over Oil Caliper |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Machine Overall Specifications | |
| Operating Weight | 5000 kg |
| Overall Dimensions (L*W*H) | 6800 * 1900 * 2880 mm |
| Wheel Drive Type | 4x4 Full-Time Four-Wheel Drive |
| Drive Axle | Large Wheel Side Reduction Axle |
| Transmission Type | Hydraulic, Automatic (F2 + R2) |
| Steering System | Articulated Full-hydraulic Steering (Steering Angle: 36°) |
| Travel Speed | 0 – 30 km/h |
| Braking System | Air Over Oil Caliper Brake |
| Max. Gradeability | 30° |
| Min. Turning Radius | 4800 mm |
| Wheel Base / Wheel Tread | 2330 mm / 1580 mm |
| Min. Ground Clearance | 300 mm |
| Tire Size | 16/70-20 |
| Engine & Hydraulic System | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling, Turbocharger |
| Rated Power | 65 kW |
| System Working Pressure | 22 MPa |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 2000 kg / 1.0 m³ |
| Bucket Width | 2000 mm |
| Max. Dump Height / Distance | 3300 mm / 1022 mm |
| Max. Breakout Force | 36 kN |
| Total Actuation Time | 9.5 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.25 m³ / 450 mm |
| Max. Digging Depth | 2500 mm (2.5 m) |
| Boom Swing Angle | 190° |
| Standard Cabin & Equipment Features | |
| Forward-Tilting Cab for Easy Maintenance, New Luxury Interior Cab, Deluxe Adjustable Rotating Seat, Front & Rear Adjustable Instrument Panel, Push-Pull Sash Windows, Skylight, Alarm Lamp, Heater, High/Low Speed Air Fan, Engine with Air Pump, Mechanical Joysticks for Loader & Backhoe, A-Type Hydraulic Outrigger Legs with Safety Locks, Backhoe Boom Buffering Function. | |
✔ 2.0-Ton Loader with Extended 1,022mm Reach: High forward dumping outreach easily centers 1.0 m³ aggregate loads into high tippers and site hoppers with rapid 9.5s cycle times.
✔ 2.5m Trenching Reach & 190° Wide Swing Arc: Excavates 2,500 mm deep with cylinder buffering and A-type locking outriggers, swinging 190° for smooth spoil dumping in confined corridors.
✔ 65kW Turbo Power & Large Hub-Reduction Axles: Four-cylinder turbocharged engine paired with large wheel side reduction axles, air-over-oil caliper brakes, and 300 mm ground clearance ensures swift 30 km/h transit and unstoppable drawbar push.
