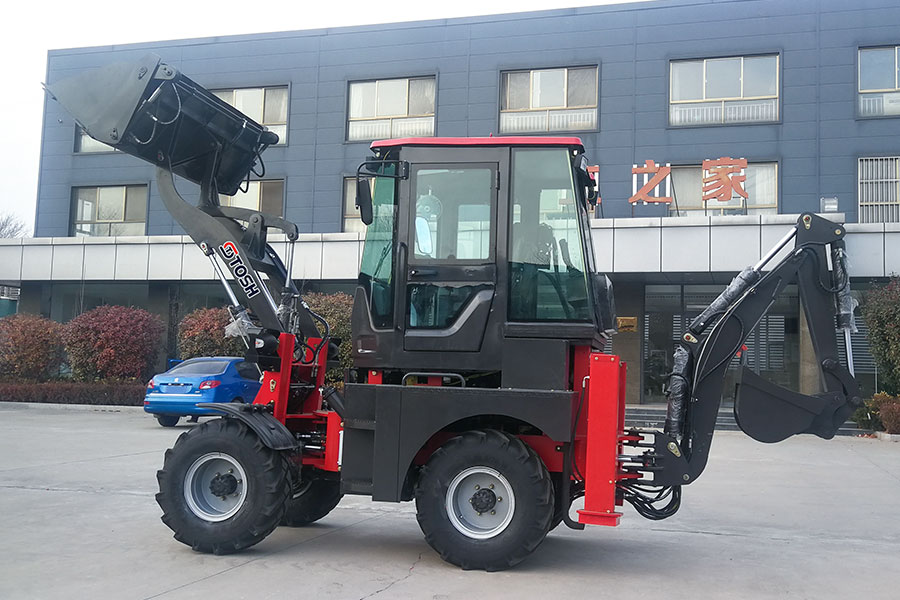

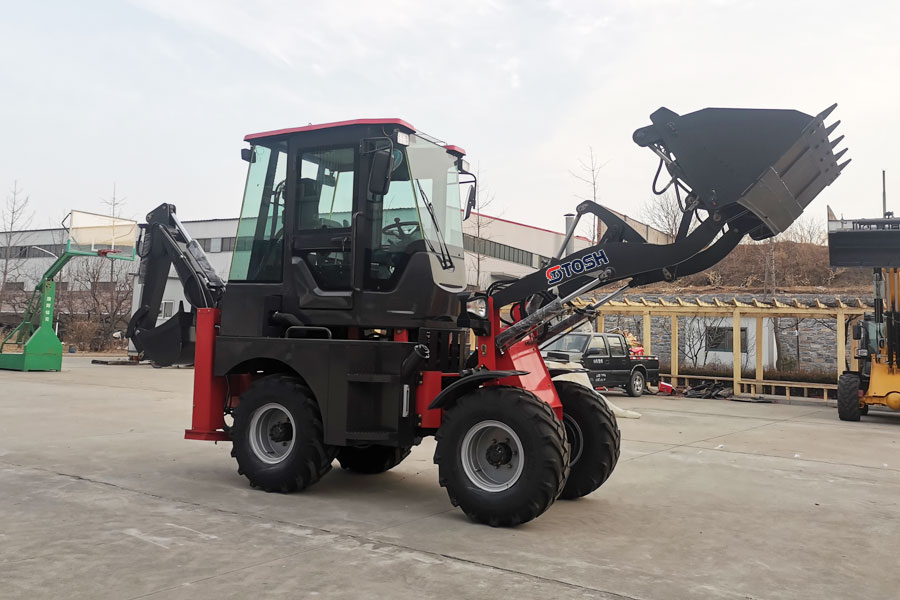

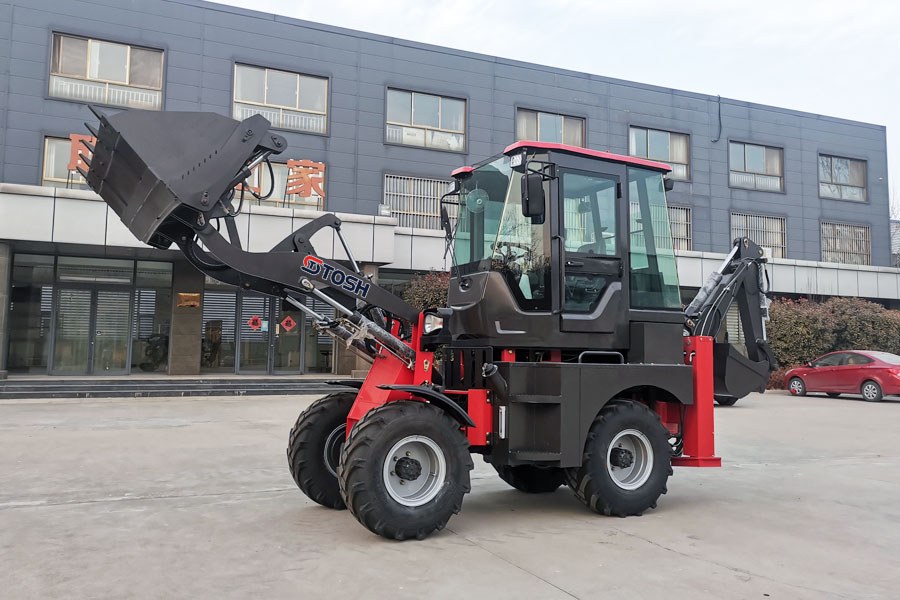

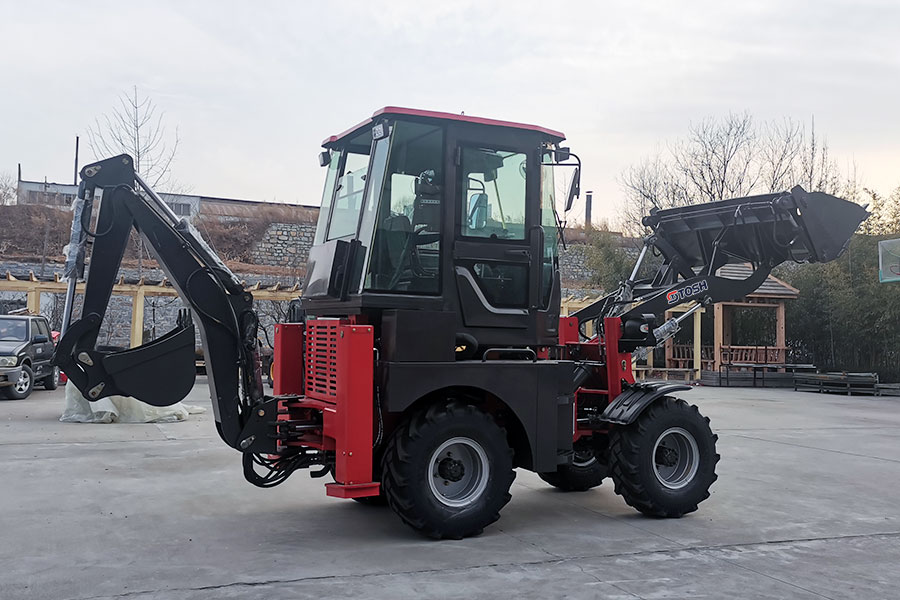

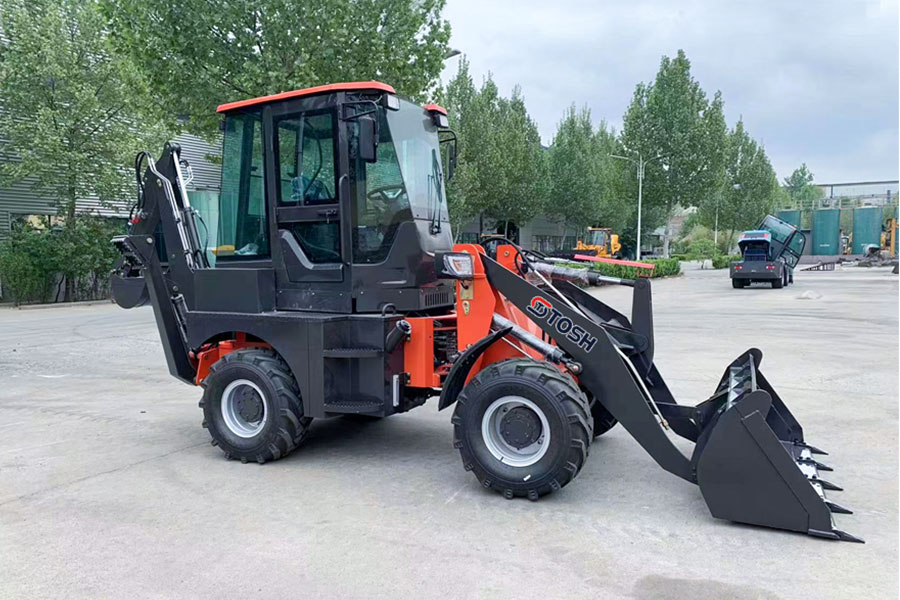

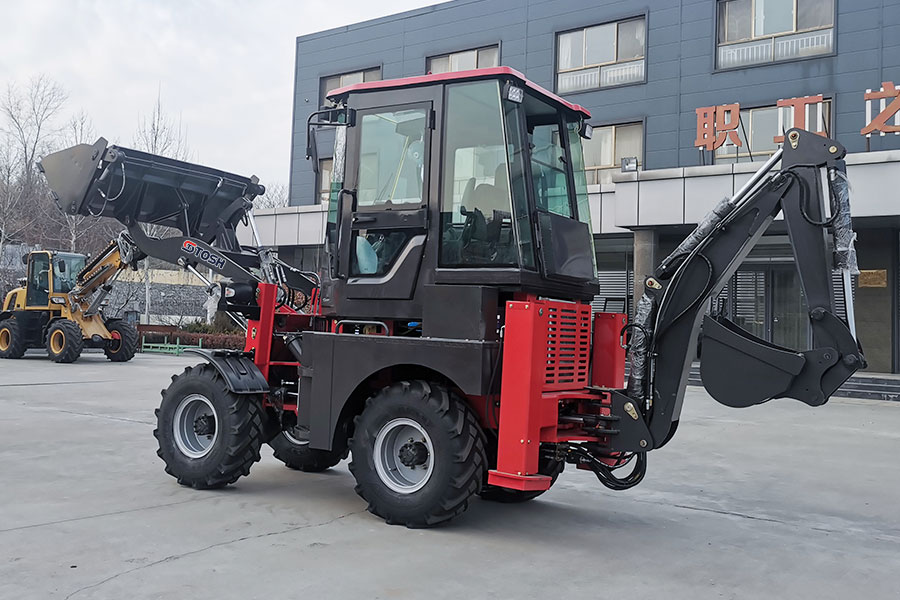

WZ15-10 Backhoe Loader
Operating Weight: 3.2 t
Dimensions: 5.6 × 1.68 × 2.78m
Power: 37 kW
WZ15-10 Compact Backhoe Loader | 3.2-Ton 4x4 Automatic 1,000kg Load & 2.2m Dig Depth
3,200kg Operating Mass | 1,000kg Front Loader (0.5m³) | 2,200mm Backhoe Dig Depth | 37kW 4-Cylinder Diesel | Isuzu Axle 4x4 Drivetrain
Why Utility & Urban Earthmoving Contractors Choose the WZ15-10 Backhoe Loader
- Dependable 37kW 4-Cylinder Liquid-Cooled Diesel: Driven by an industrial 4-cylinder, 4-stroke water-cooled diesel powerplant outputting 37 kW, powering a high-pressure 20 MPa hydraulic system with on-board engine air pump and ample torque for 30° grade climbing under load.
- 1.0-Ton Front Loader with Fast 9.5s Cycles: Carries a 1,000 kg payload in a 0.5 m³ bucket (1,600 mm width) with 20 kN breakout force and an extended 1,325 mm dump reach at 2,300 mm dump height, clearing utility truck beds and aggregate hoppers with ease.
- Precise 2.2m Trenching & 170° Backhoe Articulation: Independent rear backhoe digs down to 2,200 mm with 15 kN digging force, cylinder buffering function, and hydraulic leg locks across a 170° swing arc for safe, smooth foundation and utility excavation.
- Isuzu Axle 4x4 Automatic Drive & Tilting Luxury Cab: Built on heavy-duty Isuzu 4x4 drive axles with automatic transmission (F2+R2), 20.5/70-16 tires, and articulated hydraulic steering (3,000 mm turning radius), complemented by a forward-tilting deluxe cab with heater, fan, and rotating seat for effortless maintenance and operation.
| Model | WZ15-10 |
| Operating Weight | 3200 kg (3.2 Ton) |
| Engine Power / Type | 37 kW / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Rated Load / Capacity) | 1000 kg (1.0 Ton) / 0.5 m³ | 9.5s Actuation Time |
| Rear Backhoe (Dig Depth / Swing Angle) | 2200 mm (2.2 m) / 170° Swing (15 kN Dig Force) |
| Drive / Axle / Transmission | 4x4 Automatic (F2+R2) | Isuzu Axle | 0–20 km/h |
⬇️ View Full Technical Parameters & Configurations ⬇️
| Machine Overall Specifications | |
| Operating Weight | 3200 kg |
| Overall Dimensions (L*W*H) | 5600 * 1680 * 2780 mm |
| Wheel Drive Type | 4x4 Full-Time Four-Wheel Drive |
| Drive Axle | Isuzu Axle |
| Transmission Type | Hydraulic, Automatic (F2 + R2) |
| Steering System | Articulated Full-hydraulic Steering (Steering Angle: 28°) |
| Travel Speed | 0 – 20 km/h |
| Braking System | Hydraulic Brake / Air Brake Integration |
| Max. Gradeability | 30° |
| Min. Turning Radius | 3000 mm |
| Wheel Base / Wheel Tread | 1800 mm / 1200 mm |
| Min. Ground Clearance | 230 mm |
| Tire Size | 20.5/70-16 |
| Engine & Hydraulic System | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling |
| Rated Power | 37 kW |
| System Working Pressure | 20 MPa |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 1000 kg / 0.5 m³ |
| Bucket Width | 1600 mm |
| Max. Dump Height / Distance | 2300 mm / 1325 mm |
| Max. Breakout Force | 20 kN |
| Total Actuation Time | 9.5 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.15 m³ / 300 mm |
| Max. Digging Depth | 2200 mm (2.2 m) |
| Max. Digging Force | 15 kN |
| Boom Swing Angle | 170° |
| Standard Cabin & Equipment Features | |
| Forward-Tilting Cab for Quick Service Access, New Luxury Interior Cab, Deluxe Adjustable Rotating Seat, Front & Rear Adjustable Instrument Panel, Push-Pull Sash Windows, Heater, High/Low Speed Air Fan, Alarm Lamp, Engine with Air Pump, Mechanical Joystick for Front Loader, Hydraulic Joystick for Rear Backhoe, Backhoe Cylinder Buffering Function, Hydraulic Outrigger Leg Locks. | |
✔ 1.0-Ton Loader with Extended 1,325mm Reach: High forward dumping outreach easily centers 0.5 m³ aggregate loads into utility truck beds and site hoppers with rapid 9.5s cycle times.
✔ 2.2m Dig Depth with Hydraulic Pilot Cushioning: Rear backhoe digs down to 2,200 mm with cylinder buffering and positive hydraulic leg locks for smooth, stable trenching in tight spaces.
✔ 37kW Diesel, Isuzu 4x4 Axles & Tilting Cab: Four-cylinder liquid-cooled power combined with heavy Isuzu axles, tight 3.0m turning radius, and forward-tilting cab structure ensures effortless maneuverability and low maintenance downtime.
