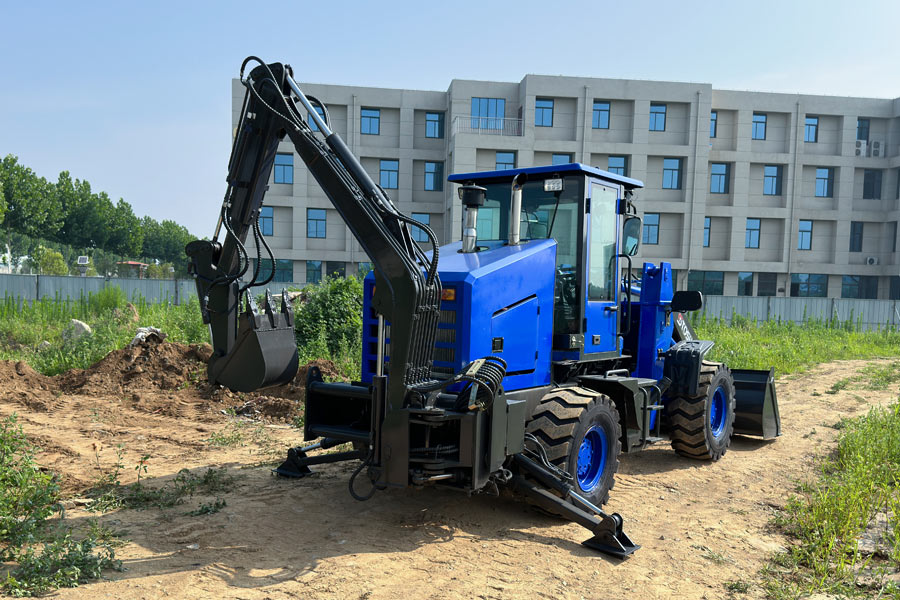

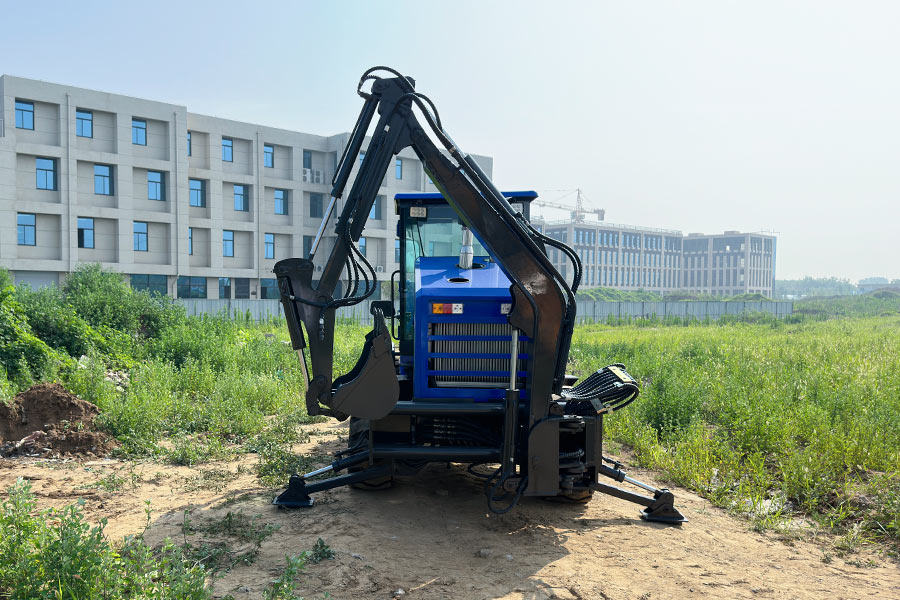

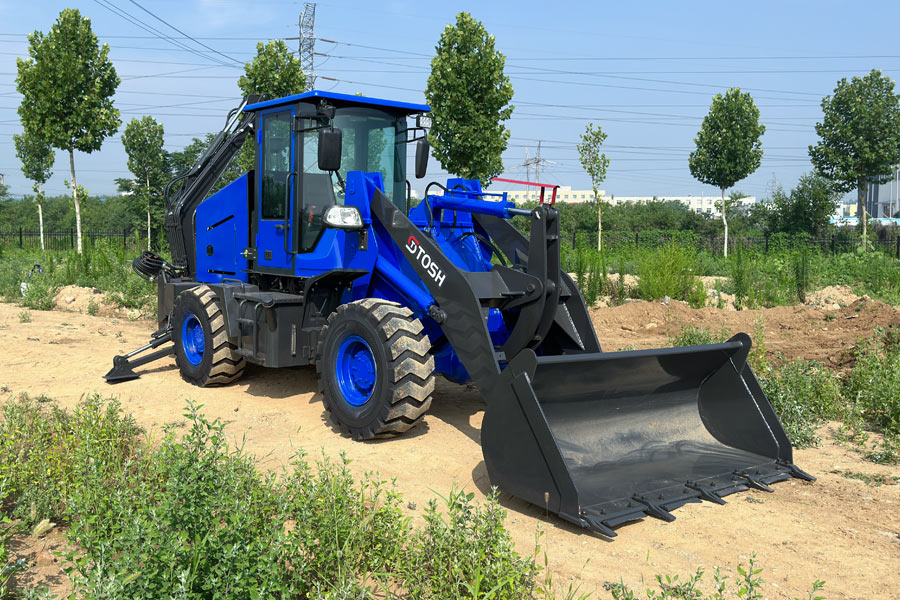

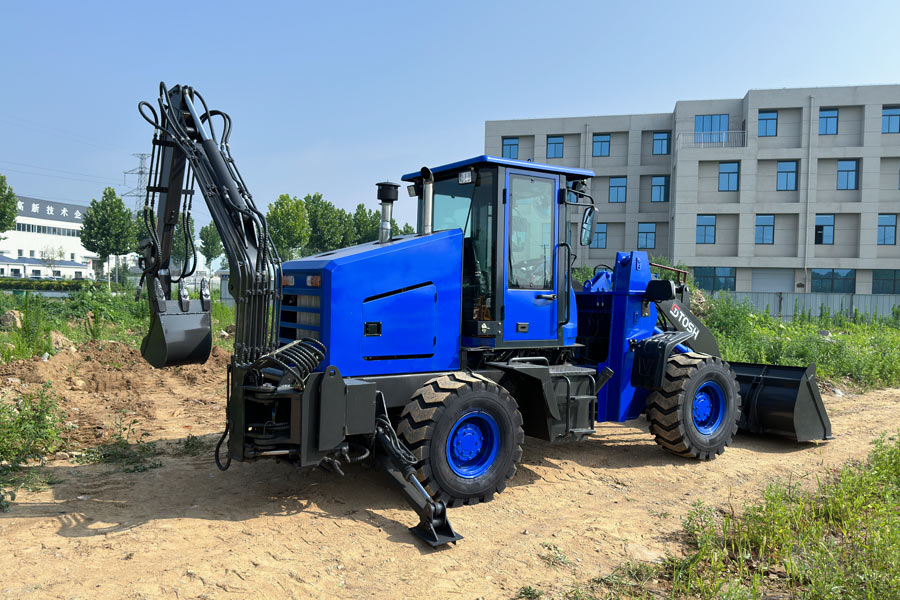

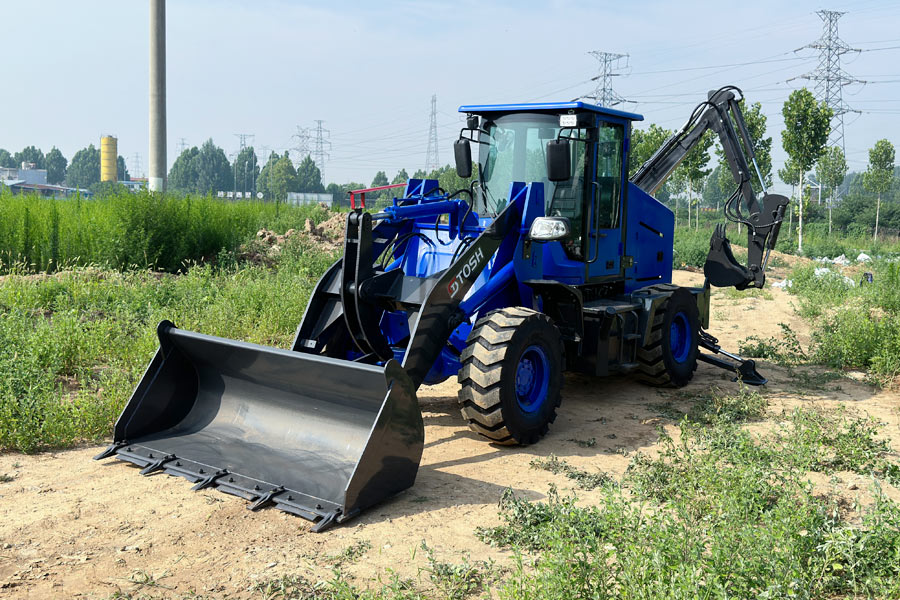

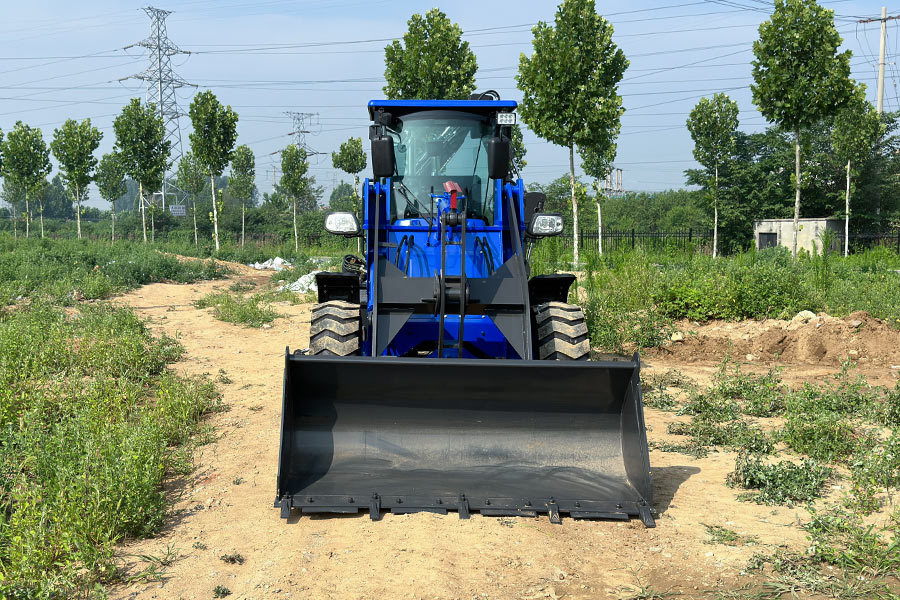

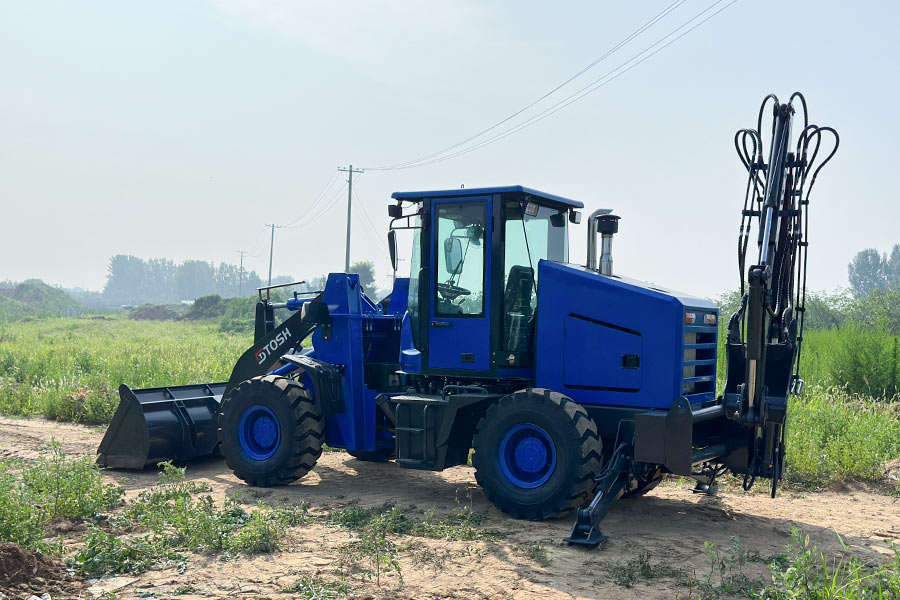

WZ15-26D Backhoe Loader
Operating Weight: 4 t
Dimensions: 5.8 × 1.85 × 2.6m
Power: 60 kW
WZ15-26D Heavy-Duty Backhoe Loader | 4.0-Ton 4x4 Automatic 1.8-Ton Load & 60kW Turbo Power
4,000kg Operating Mass | 1,800kg Front Loader (0.9m³) | 2,400mm Backhoe Dig Depth | 60kW Turbo Diesel | Hub Reduction 4x4 Axles
Why Heavy Earthmoving Contractors Choose the WZ15-26D Backhoe Loader
- High-Output 60kW Turbocharged Diesel Engine: Powered by a durable 4-cylinder, 4-stroke water-cooled turbocharged diesel powerplant delivering 60 kW of continuous output, providing high torque reserves to drive a 20 MPa hydraulic system and tackle 30° grade climbing under full load.
- Solid 1.8-Ton Loader Capacity (0.9m³ Bucket): Outfitted with an expansive 1,800 mm wide bucket, 36 kN breakout force, and an elevated 3,200 mm dumping clearance (3,750 mm max lift height), easily loading commercial tandem-axle tippers and batching hoppers.
- Deep 2.4m Trenching Reach & 180° Backhoe Articulation: Independent rear backhoe digs down to 2,400 mm with 28 kN tearing force, a 2,500 mm ground reach, and 2,200 mm dump height across an expansive 180° swing arc for rapid spoil dumping without moving the chassis.
- Wheel Side Reduction Axles & Air Braking System: Engineered with heavy-duty hub-reduction 4x4 drive axles, automatic hydraulic transmission (F2+R2), wide 20.5-16 traction tires, 220 mm ground clearance, and responsive air brakes, delivering agile site travel speeds up to 26 km/h.
| Model | WZ15-26D |
| Operating Weight | 4000 kg (4.0 Ton) |
| Engine Power / Type | 60 kW Turbocharged / 4-Cylinder Water-Cooled Diesel |
| Front Loader (Rated Load / Capacity) | 1800 kg (1.8 Ton) / 0.9 m³ (Dump Height: 3200 mm) |
| Rear Backhoe (Dig Depth / Swing Angle) | 2400 mm (2.4 m) / 180° Full Swing (Dig Force: 28 kN) |
| Drive / Axle / Brake System | 4x4 Automatic | Wheel Side Reduction Axles | Air Brake |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Machine Overall Specifications | |
| Operating Weight | 4000 kg |
| Overall Dimensions (L*W*H) | 5800 * 1850 * 2600 mm |
| Wheel Drive Type | 4x4 Full-Time Four-Wheel Drive |
| Drive Axle | Wheel Side Reduction Axle |
| Transmission Type | Hydraulic, Automatic (F2 + R2) |
| Steering System | Articulated Full-hydraulic Steering (Steering Angle: 33°) |
| Travel Speed | 0 – 26 km/h |
| Braking System | Air Brake (Braking Distance: 450 mm) |
| Max. Gradeability | 30° |
| Min. Turning Radius | 4000 mm |
| Wheel Base / Wheel Tread | 2315 mm / 1500 mm |
| Min. Ground Clearance | 220 mm |
| Tire Size | 20.5-16 |
| Engine & Hydraulic System | |
| Engine Type | Diesel, 4-Cylinder, 4-Stroke, Water-Cooling, Turbocharger |
| Rated Power | 60 kW |
| System Working Pressure | 20 MPa |
| Front Loader Technical Parameters | |
| Loader Rated Load / Capacity | 1800 kg / 0.9 m³ |
| Bucket Width | 1800 mm |
| Max. Lifting / Dump Height | 3750 mm / 3200 mm |
| Max. Dump Distance | 800 mm |
| Max. Breakout Force | 36 kN |
| Total Actuation Time | 12 s |
| Rear Backhoe Technical Parameters | |
| Backhoe Bucket Capacity / Width | 0.13 m³ / 460 mm |
| Max. Digging Depth | 2400 mm |
| Max. Digging Height / Dump Height | 3600 mm / 2200 mm |
| Max. Digging Radius | 2500 mm |
| Max. Digging Force | 28 kN |
| Boom Swing Angle | 180° |
✔ 1.8-Ton Loader Capacity & 3.2m Dump Clearance: Handles 0.9 m³ batches with 36 kN breakout force and 3,750 mm maximum lift height, clearing high-sided road haulage tippers with ease.
✔ Deep 2.4m Trenching Reach & 28kN Dig Force: Excavates deep utility trenches with 28 kN tearing force, swinging a full 180° for versatile spoil deposition without reparking.
✔ 60kW Turbo Diesel & Hub-Reduction Drivetrain: Four-cylinder turbocharged power paired with wheel side reduction 4x4 axles, air brakes, and wide 20.5-16 tires ensures dependable 26 km/h site mobility and strong tractive drawbar pull.
