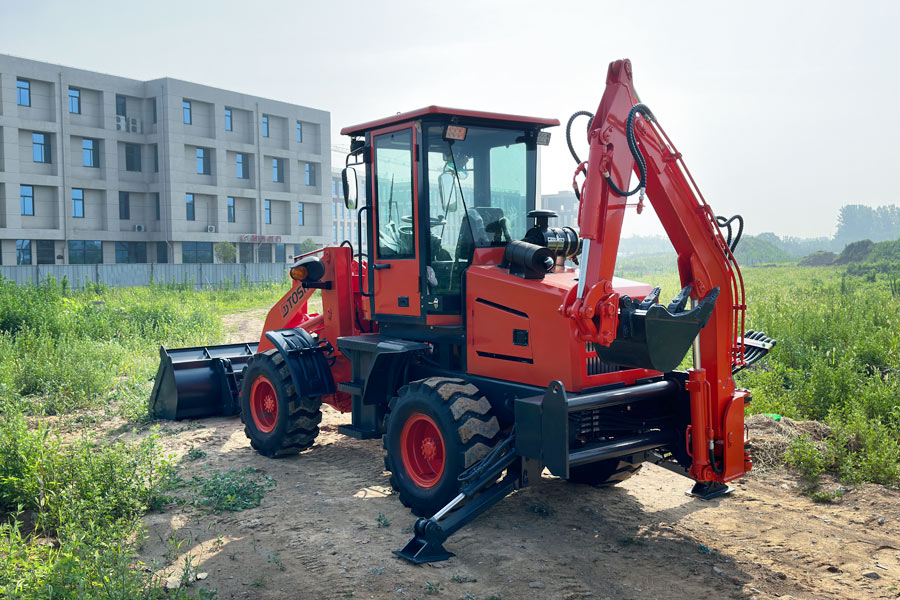

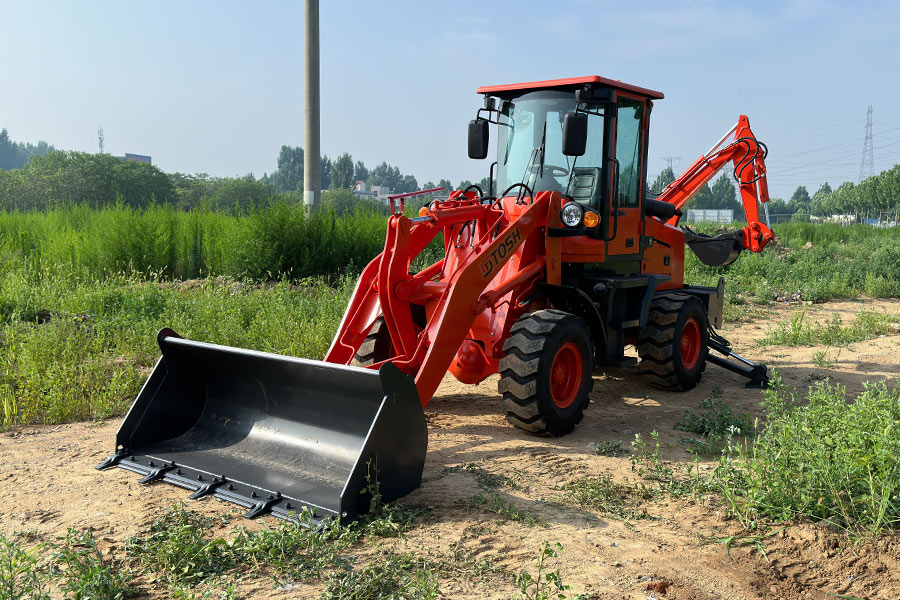

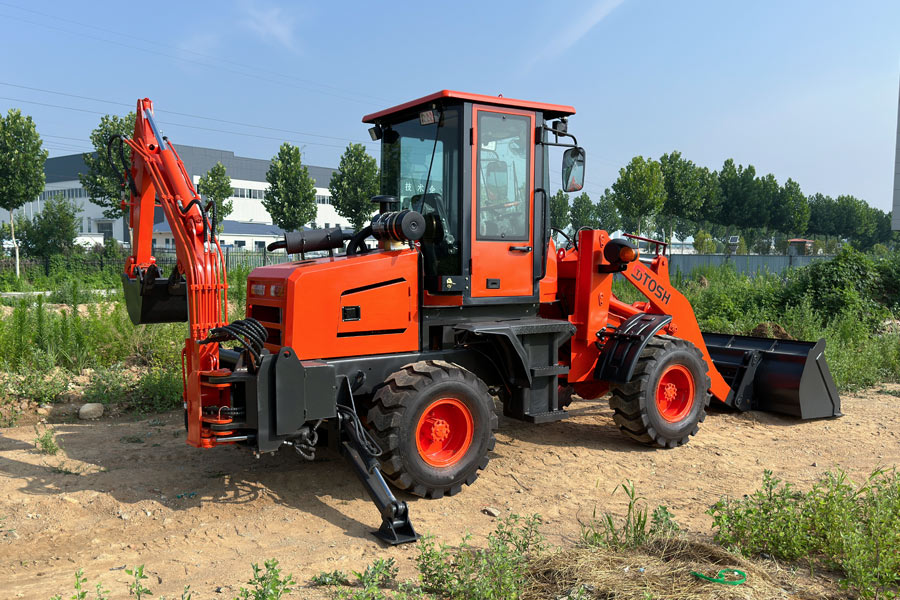

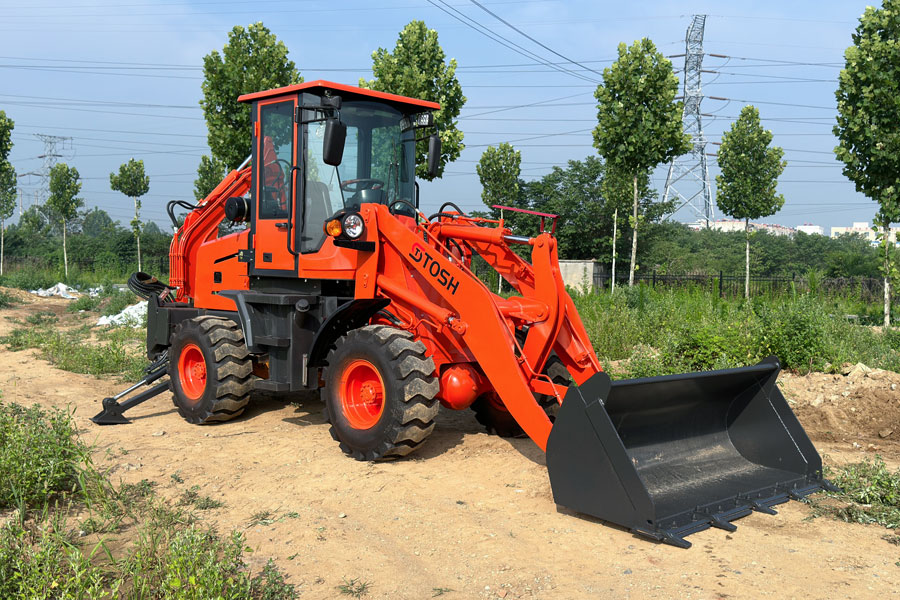

Why Utility & Earthmoving Contractors Choose the WZ10-20 Backhoe Loader

• Dependable 42kW 4-Cylinder Liquid-Cooled Diesel: Driven by an industrial 4-cylinder, 4-stroke water-cooled diesel powerplant producing 42 kW, sustaining an upgraded 20 MPa system pressure to maintain cycle speed under simultaneous crowd and hoist loads.

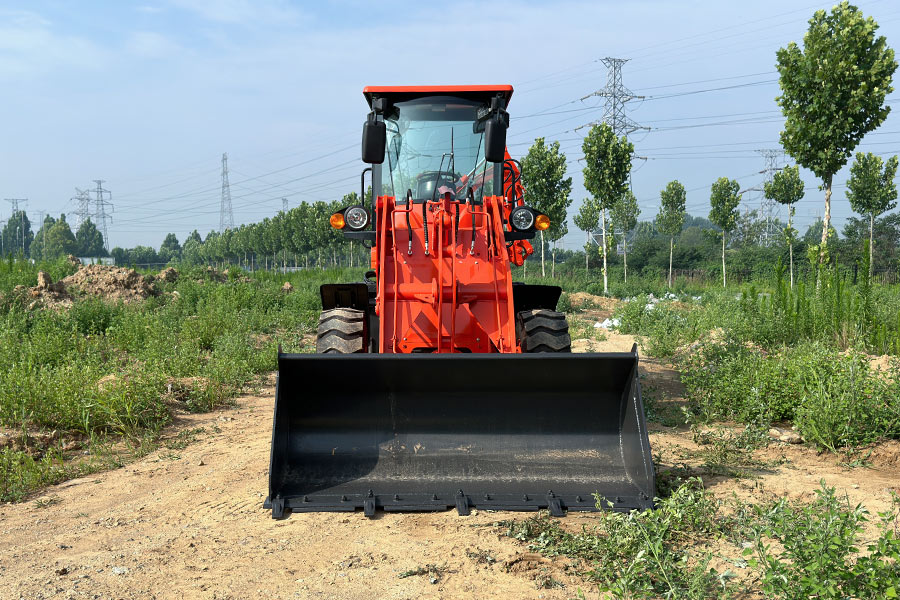

• Uprated 1.5-Ton Loader Payload (0.75m³ Bucket): Outfitted with an expansive 1,800 mm wide bucket, 36 kN breakout force, and a 2,800 mm dumping clearance (3,400 mm max lifting height) for quick truck loading and efficient site material handling.

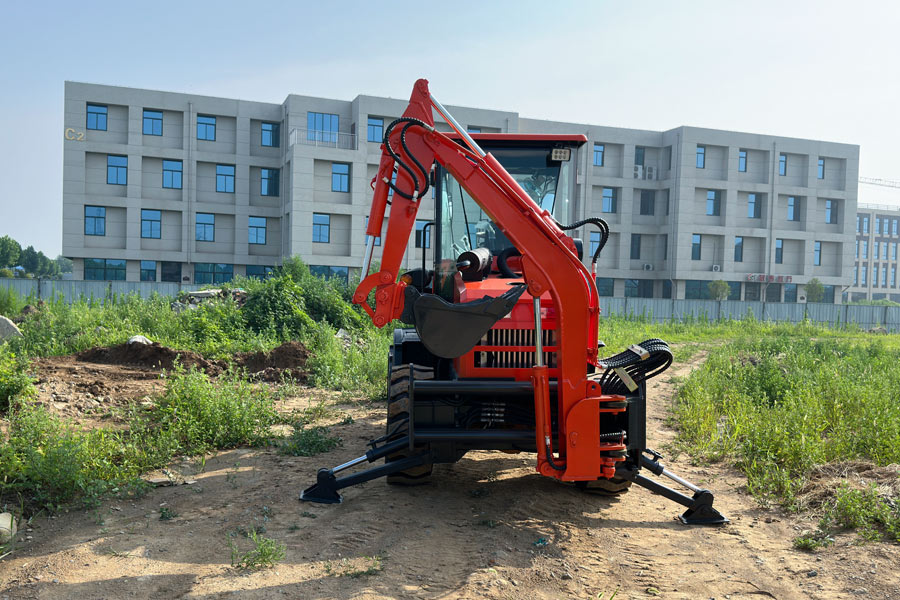

• True 2.0m Trenching Depth & 180° Backhoe Articulation: Independent rear backhoe digs down to 2,000 mm with 25 kN digging force and a 2,900 mm digging radius across an expansive 180° swing arc, enabling precise spoil placement without moving the chassis.
• Heavy-Duty Isuzu Axle 4x4 Automatic Drivetrain: Built on reliable Isuzu drive axles with automatic hydraulic transmission (F2+R2), 20.5-16 wide flotation tires, and 280 mm ground clearance, achieving roading speeds up to 26 km/h with 30° gradeability.

✔ 1.5-Ton Loader with 2.8m Dump Clearance: Handles 0.75 m³ batches with 36 kN breakout force and 3,400 mm maximum lift height, clearing high-sided trucks and aggregate bins with ease.

✔ Solid 2.0m Trenching Reach & 180° Swing: Digs 2,000 mm deep with 25 kN tearing force and 2,900 mm reach, swinging a full 180° for flexible spoil deposition in tight corridors.

✔ 42kW Diesel & Isuzu Axle 4x4 Mobility: Liquid-cooled 4-cylinder engine paired with Isuzu drive axles, 20.5-16 tires, and 280 mm ground clearance ensures reliable 26 km/h road travel and rugged jobsite traction.
